LAMBDA Engine
WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
- If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
- Disconnect the negative (-) battery terminal.
- Recover the refrigerant with a recovery/charging station.
- Remove the sub frame.
(Refer to Suspension System - " SUB FRAME ")
- Loosen the drive belt.
G 2.0 T-GDI-THETA (Refer to Engine Mechanical System - " DRIVE BELT ")
G 3.3 T-GDI-LAMBDA (Refer to Engine Mechanical System - " DRIVE BELT ")

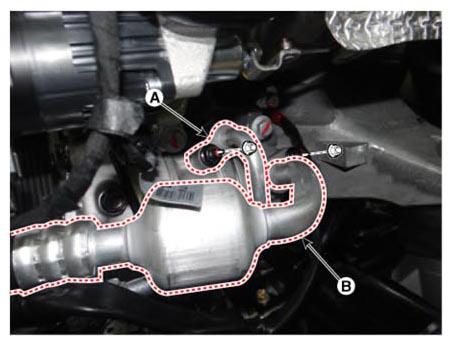

- Remove the discharge line (A) and suction line (B) from the compressor.
Tightening torque: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

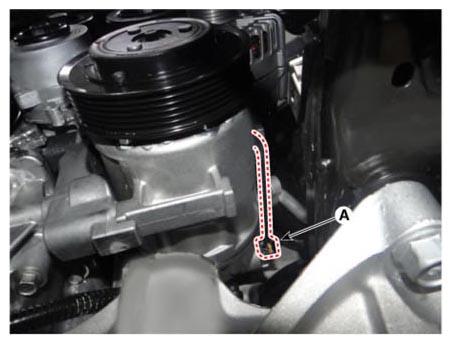

NOTE: Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination. - Disconnect the ECV connector (A).

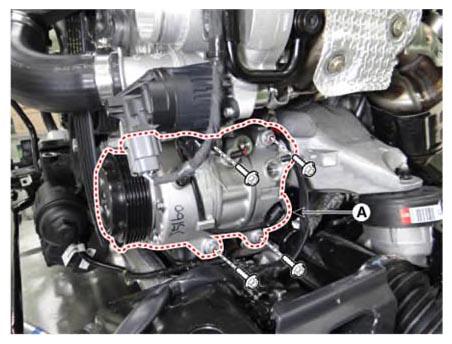

- Remove the compressor assembly (A) after loosening the bolts.
Tightening torque: 20.00 - 32.95 N.m (2.04 - 3.36 kgf.m, 14.75 - 24.30 lb.ft)
