Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the evaporator core assembly.

    (Refer to Air Conditioning System - " EVAPORATOR CORE  ")

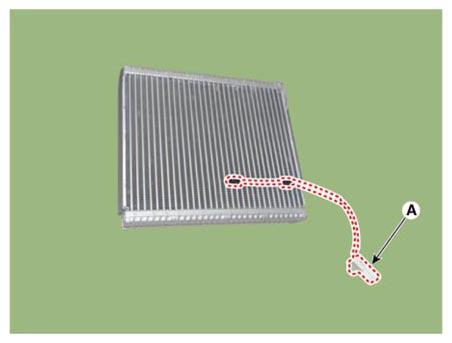

  3. Remove the evaporator temperature sensor (A) from evaporator sensor.
    G12799084Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
