Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

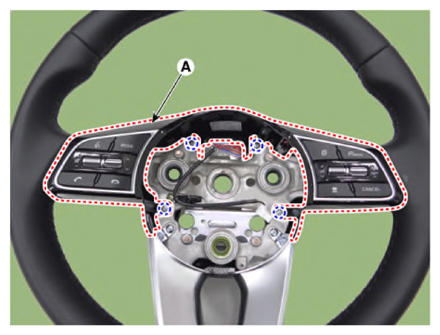

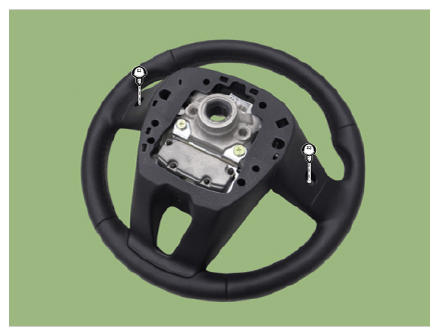

  3. Remove the steering wheel bezel assembly (A) after loosening the mounting screws.
    G13305768Courtesy of KIA MOTORS AMERICA, INC.
    G13305769Courtesy of KIA MOTORS AMERICA, INC.

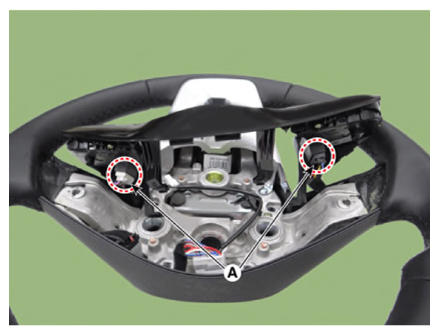

  4. Disconnect the connector (A) from steering wheel remote control.
    G13305770Courtesy of KIA MOTORS AMERICA, INC.

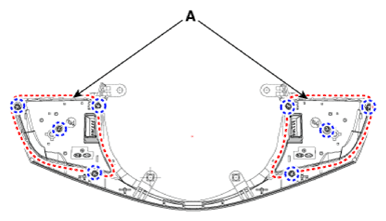

  5. Remove the steering wheel remote control (A) from bezel after loosening the screws.
    G13305771Courtesy of KIA MOTORS AMERICA, INC.
