Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

When installing, place the wiper arm to the specified position and then tighten the nut.

[Passenger side]

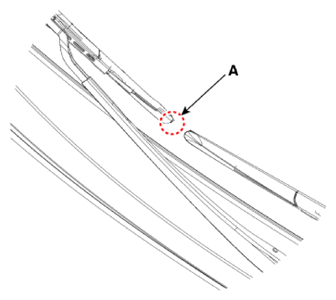

Place the wiper of passenger side to the marking (A) position of cowl top cover.

Courtesy of KIA MOTORS AMERICA, INC.

[Driver side]

Place the wiper of driver side to the end (A) of passenger wiper blade.

Courtesy of KIA MOTORS AMERICA, INC.
