Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

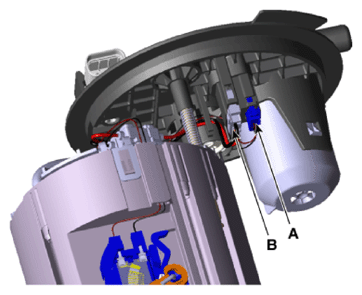

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G13307238Courtesy of KIA MOTORS AMERICA, INC.

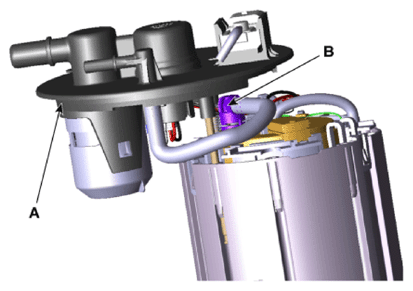

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G13307239Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fuel sender (A) in the direction of an arrow.
    G13307240Courtesy of KIA MOTORS AMERICA, INC.

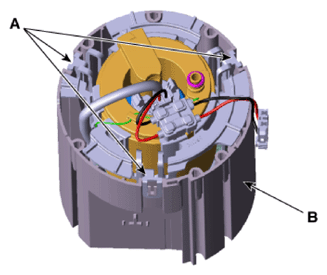

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G13307241Courtesy of KIA MOTORS AMERICA, INC.

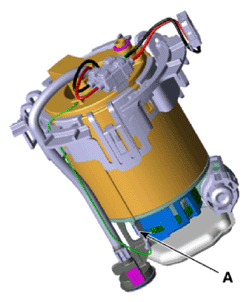

  7. Disconnect the ground (A).
    G13307242Courtesy of KIA MOTORS AMERICA, INC.

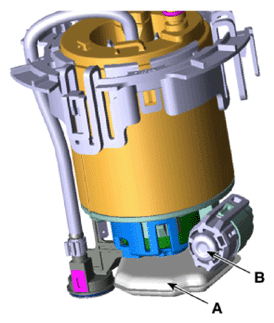

  8. Release the fixing hooks, and then remove the pre-filter (A) and the fuel pressure regulator (B).
    G13307243Courtesy of KIA MOTORS AMERICA, INC.

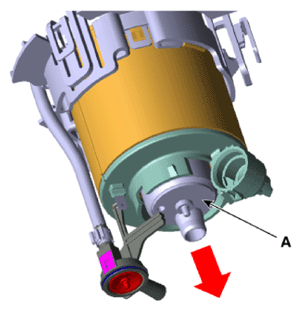

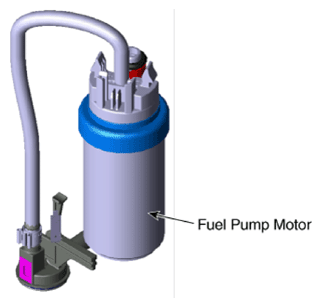

  9. Remove the fuel pump motor (A) in the direction of arrow.
    G13307244Courtesy of KIA MOTORS AMERICA, INC.
    G13307245Courtesy of KIA MOTORS AMERICA, INC.
