General Information: Disassembly

If the disassembly procedure is complex, requiring many parts to be disassembled, all parts should be disassembled in a way that will not affect their performance or external appearance.

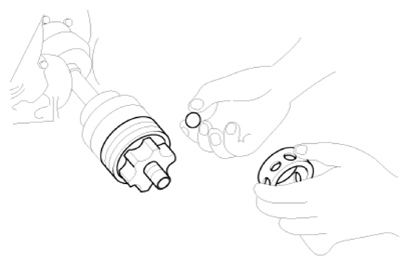

1. Inspection of parts

   After removal, inspect each part carefully for malfunction, deformation, damage and other problems.

   Courtesy of KIA MOTORS AMERICA, INC.

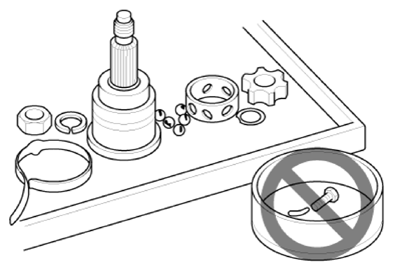

2. Arrangement of parts

   All disassembled parts should be carefully arranged for effective reassembly.

   Be sure to separate and correctly identify the parts to be replaced from those that will be used again.

   Courtesy of KIA MOTORS AMERICA, INC.

   Cleaning parts for reuse

   All reusable parts should be carefully and thoroughly cleaned in the appropriate method.

   Courtesy of KIA MOTORS AMERICA, INC.
