Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to Body - "CRASH PAD CENTER LOWER PANEL ")

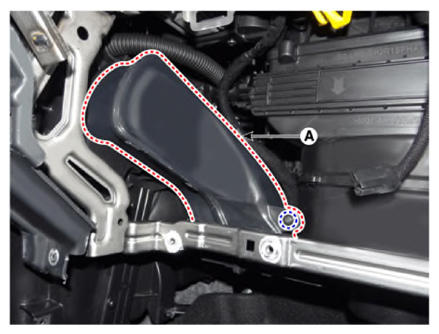

  3. Remove the passenger's side shower duct (A) after loosening the screw.
    G13306492Courtesy of KIA MOTORS AMERICA, INC.

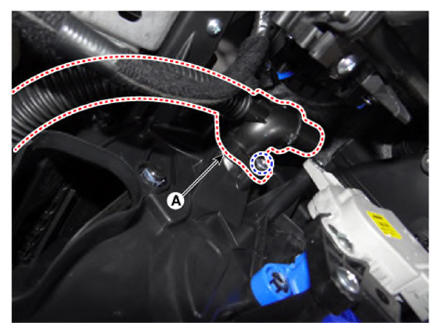

  4. After loosening the mounting screws, remove the aspirator hose (A).
    G13306493Courtesy of KIA MOTORS AMERICA, INC.

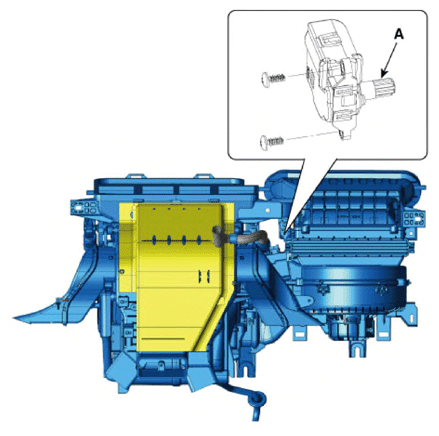

  5. Disconnect the connector and then remove the intake actuator (A) after loosening the mounting screws.
    G13306494Courtesy of KIA MOTORS AMERICA, INC.
  6. To install, reverse the removal procedure.
