Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

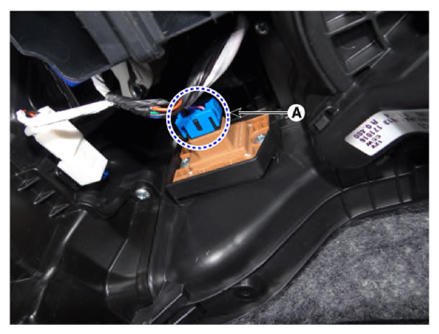

  2. Disconnect the power mosfet connector (A).
    G13306485Courtesy of KIA MOTORS AMERICA, INC.

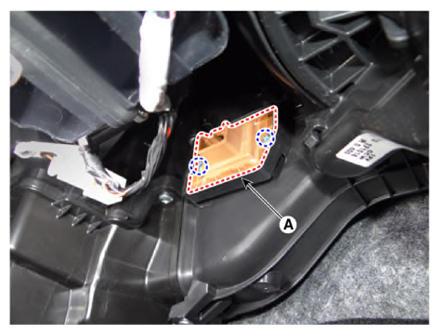

  3. After loosening the mounting screws, remove the power mosfet (A).
    G13306486Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
