Home >> Kia >> 2021 >> Forte EX >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Heater System >> Heater Unit >> Components And Components Location >> Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Components And Components Location: Components

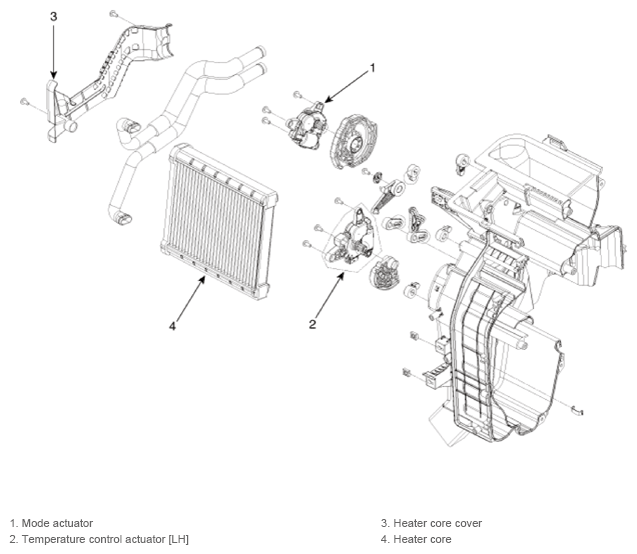

[LH]

G13306427Courtesy of KIA MOTORS AMERICA, INC.

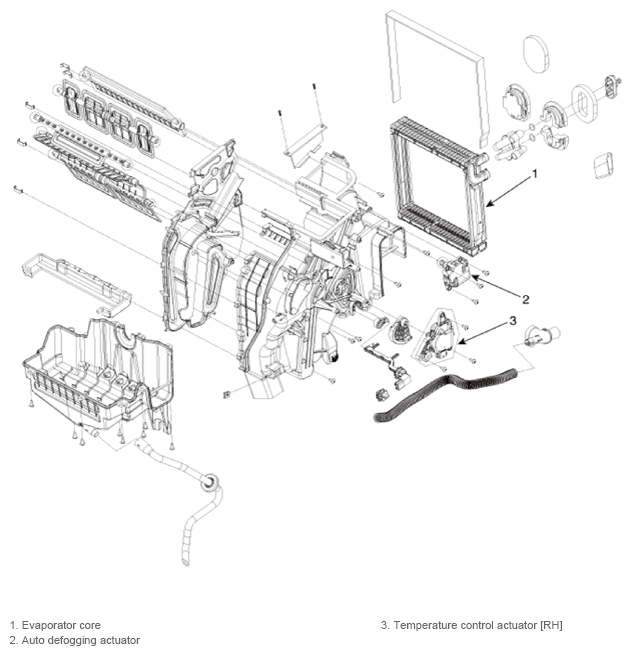

[RH]

G13306428Courtesy of KIA MOTORS AMERICA, INC.
