Repair Procedures: Replacement

[Driver's side]

1. Disconnect the negative (-) battery terminal.

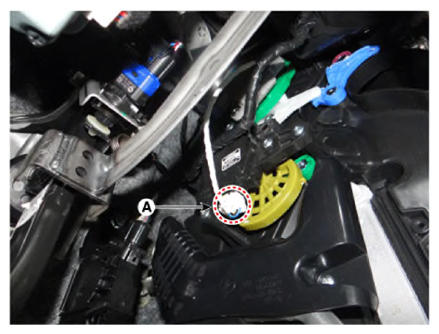

2. Disconnect the temperature control actuator connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

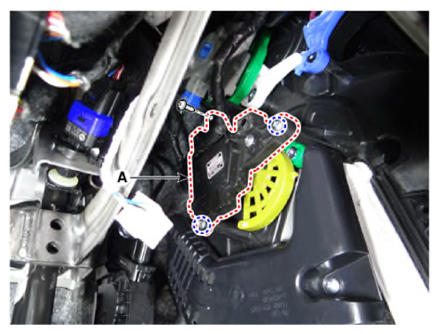

3. After loosening the mounting screws, remove the temperature control actuator assembly (A).

   Courtesy of KIA MOTORS AMERICA, INC.

4. To install, reverse the removal procedure.

[Passenger's side]

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad center lower panel.

   (Refer to Body - "CRASH PAD CENTER LOWER PANEL ")

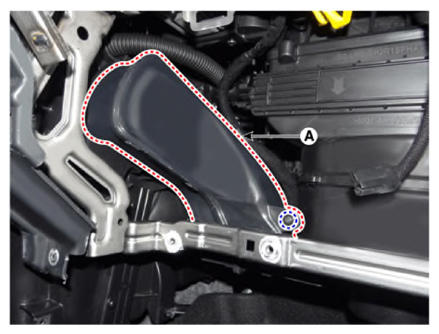

3. Remove the passenger's side shower duct (A) after loosening the screw.

   Courtesy of KIA MOTORS AMERICA, INC.

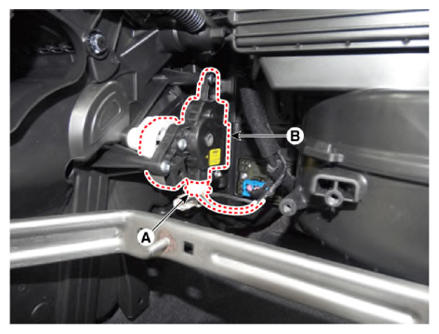

4. Disconnect the connector (B) and then remove the passenger's side temperature control actuator (A) after loosening the mounting screws.

   Courtesy of KIA MOTORS AMERICA, INC.

5. To install, reverse the removal procedure.
