Dust cap

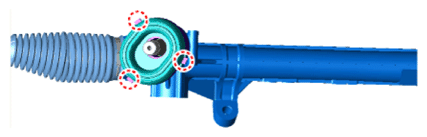

  1. Remove the dust cap cover.
    G13304752Courtesy of KIA MOTORS AMERICA, INC.

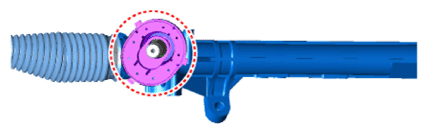

  2. Remove the dust cap.
    G13304753Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
