Vehicle S/W Management: Notes
| Inspection Condition |
Inspection Procedure |
Reference |
| 1. Ignition "ON" and engine "OFF". |
- Connect KDS to Data Link Connector (DLC).
- Perform
"Vehicle S/W Management" of concerned component with KDS.
|

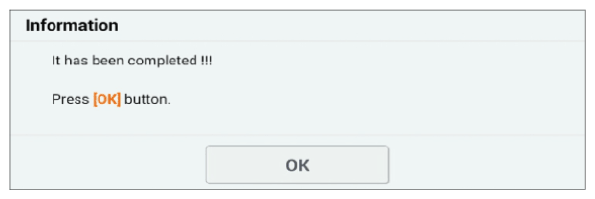

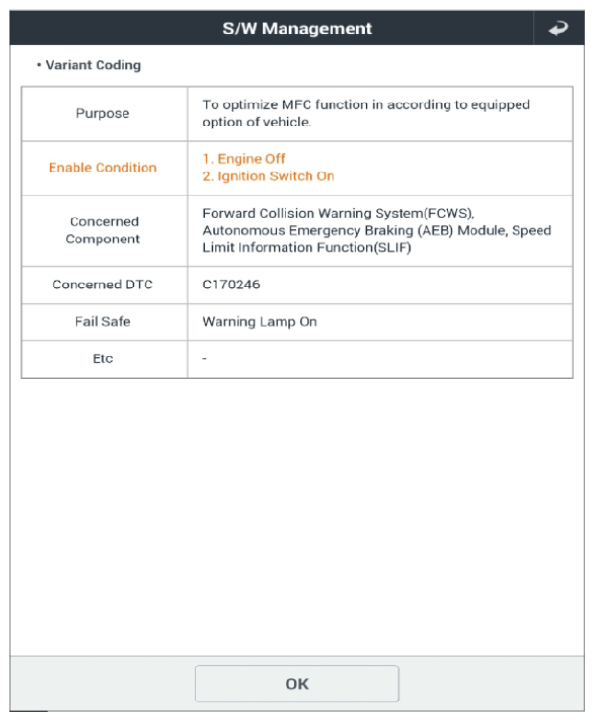

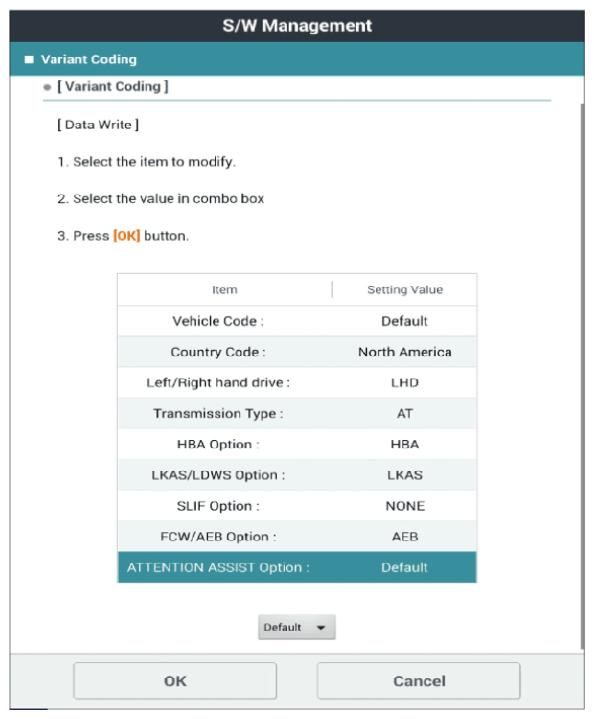

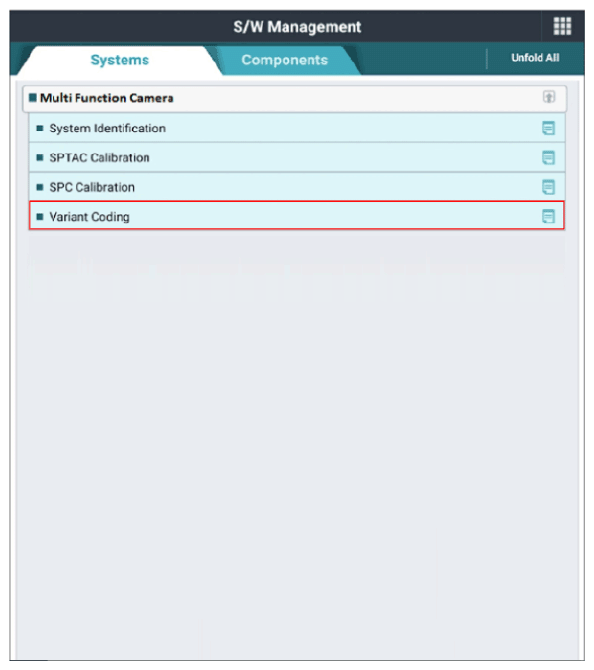

Fig.1 to 4 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON" and engine "OFF".
|
- Connect KDS to Data Link Connector (DLC).
- Perform
"Vehicle S/W Management" of concerned component with KDS.
|
Fig.1 to 9 |
