Repair Procedures: Removal

Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

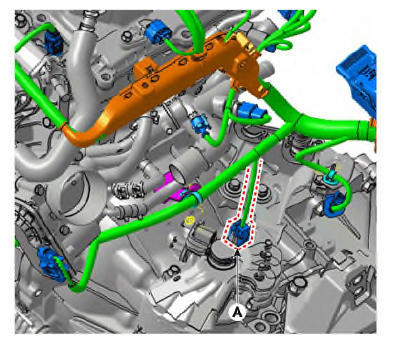

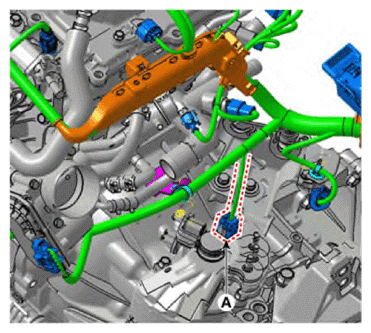

Disconnect the back-up lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

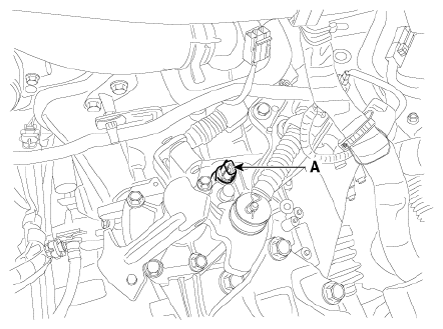

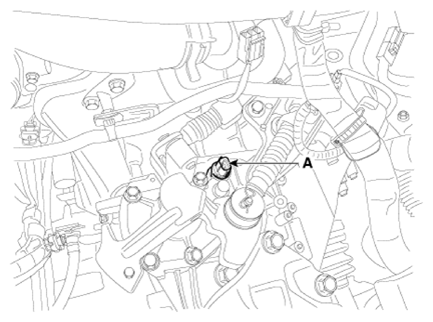

Remove the back up lamp switch (A).
Tightening torque:

39.2 - 58.9 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
