Connector And Terminal Function

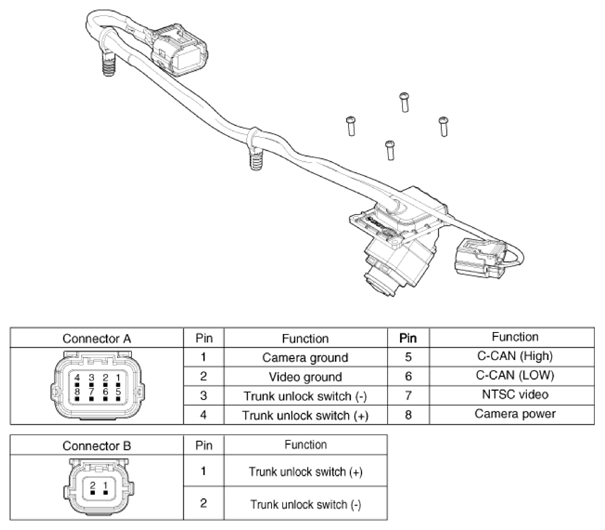

Fig 1: Rear View Monitor Connector End View And Terminal Description
G13306180Courtesy of KIA MOTORS AMERICA, INC.
