Repair Procedures: Removal

  1. Remove the front seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

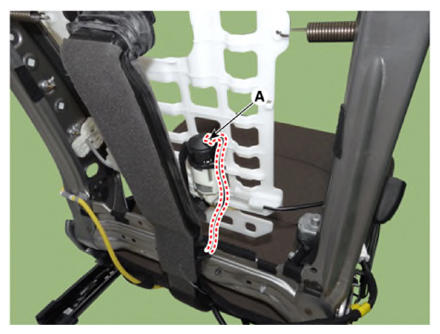

  2. Disconnect the connector (A) from lumber support motor.
    G13306226Courtesy of KIA MOTORS AMERICA, INC.

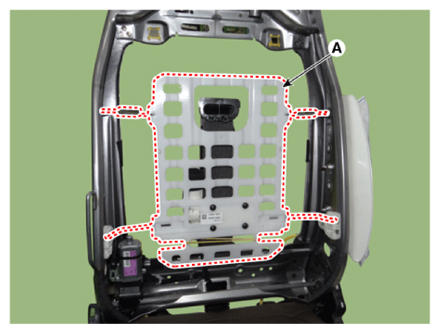

  3. Remove the lumber support (A).
    G13306227Courtesy of KIA MOTORS AMERICA, INC.
