Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

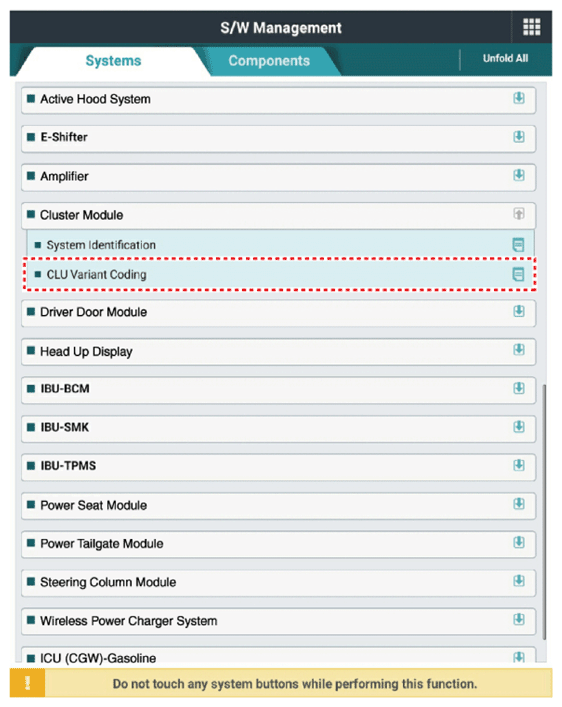

G13305950Courtesy of KIA MOTORS AMERICA, INC.

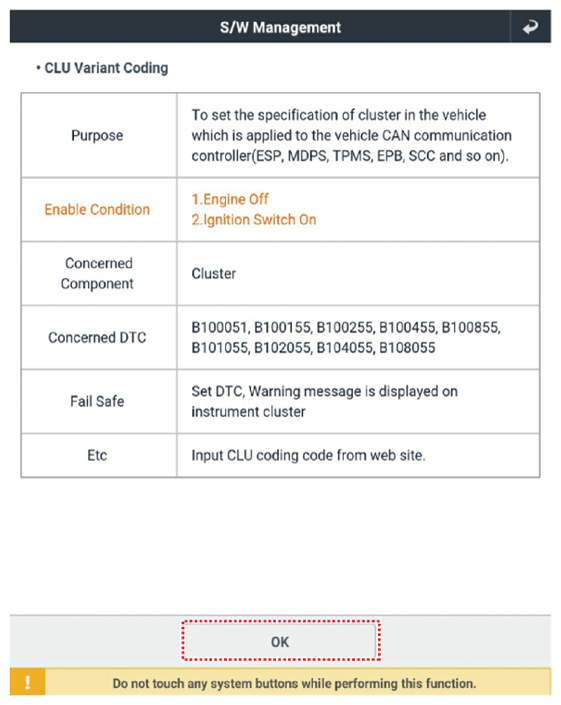

G13305951Courtesy of KIA MOTORS AMERICA, INC.

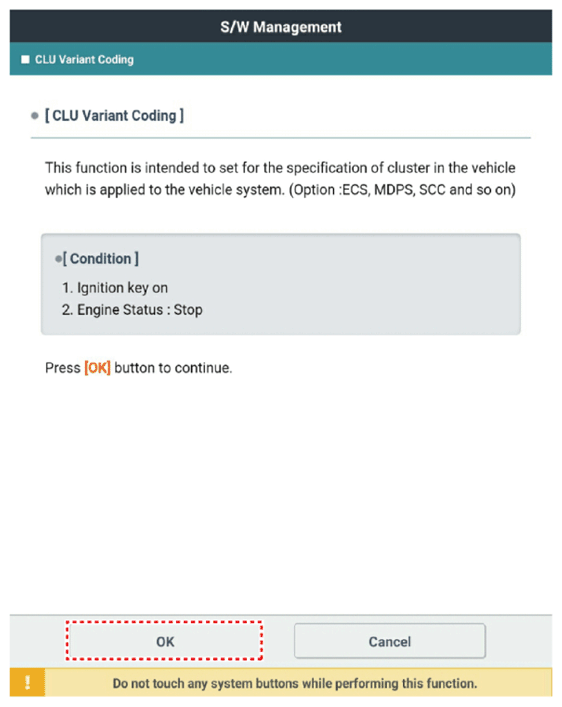

G13305952Courtesy of KIA MOTORS AMERICA, INC.
