Repair Procedures: Removal

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

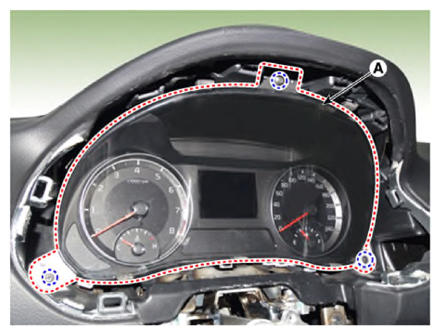

  3. Remove the instrument cluster (A) after loosening the screws.
    G13305948Courtesy of KIA MOTORS AMERICA, INC.

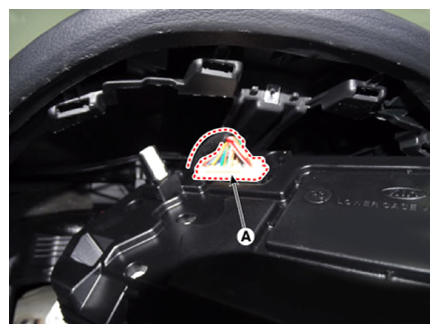

  4. Disconnect the connector (A) from instrument cluster.
    G13305949Courtesy of KIA MOTORS AMERICA, INC.
