Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

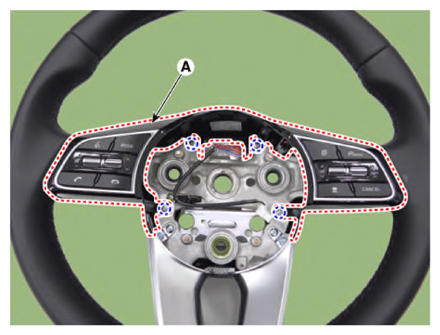

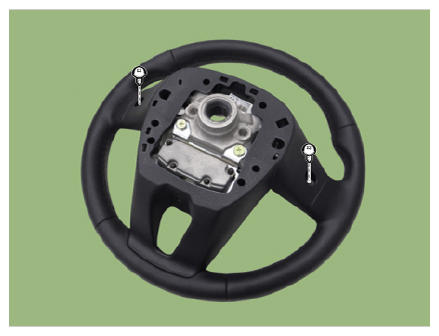

  3. Remove the steering wheel bezel assembly (A) after loosening the mounting screws.
    G14563726Courtesy of KIA MOTORS AMERICA, INC.
    G14563727Courtesy of KIA MOTORS AMERICA, INC.

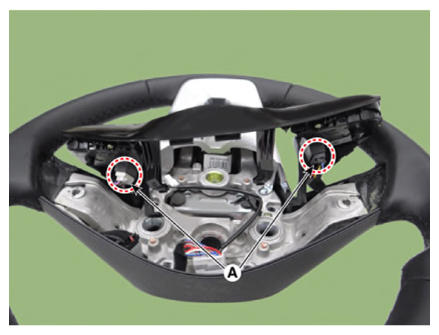

  4. Disconnect the connector (A) from steering wheel remote control.
    G14563728Courtesy of KIA MOTORS AMERICA, INC.

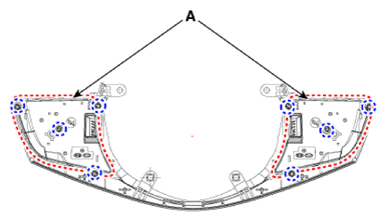

  5. Remove the steering wheel remote control (A) from bezel after loosening the screws.
    G14563729Courtesy of KIA MOTORS AMERICA, INC.
