Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

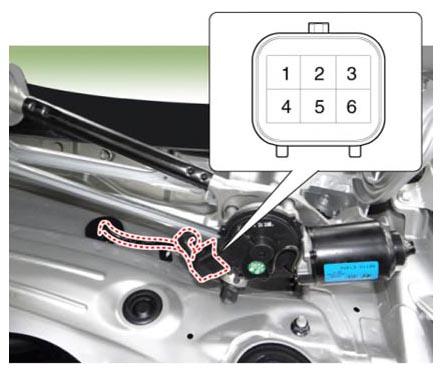

Remove the connector from the wiper motor.

Courtesy of KIA MOTORS AMERICA, INC.

No.	Description
1	-
2	Battery
3	Wiper motor (Parking)
4	Wiper motor (High)
5	Ground
6	Wiper motor (Low)

Attach the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 5.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
