Component Inspection
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the ignition lock & clutch switch.

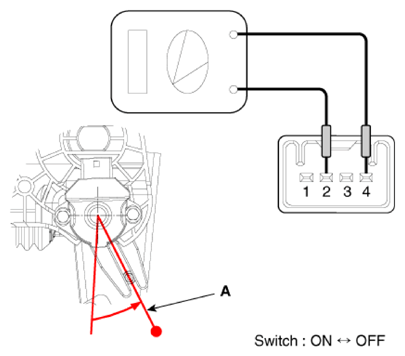

- Rotate the switch lever to the direction of the arrow to check the operating point (A).
32.5° ± 3°
