Repair Procedures: Replacement

CAUTION: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Remove the heater and blower assembly.

    (Refer to Heater - "HEATER UNIT ")

  2. Separate the blower unit (A) from the heater unit after loosening the screws.

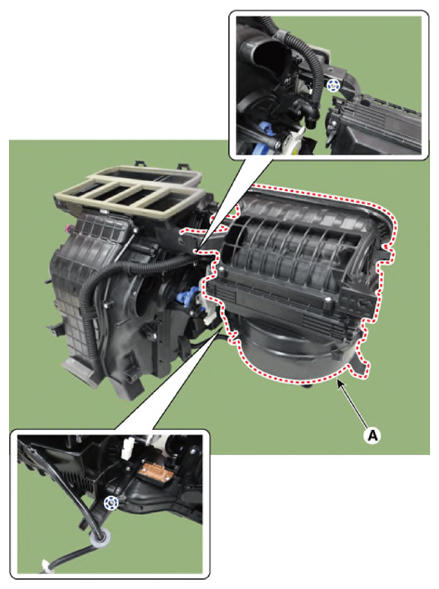

    [Front]

    G13306478Courtesy of KIA MOTORS AMERICA, INC.

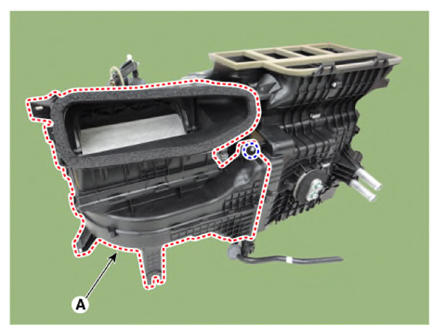

    [Rear]

    G13306479Courtesy of KIA MOTORS AMERICA, INC.

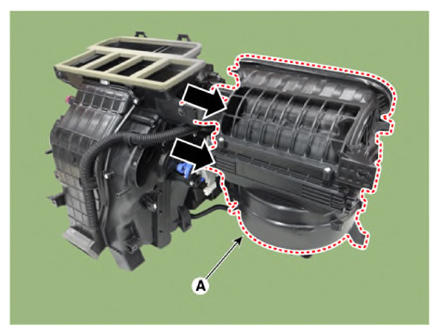

    G13306480Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reverse the removal procedure.
