Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the M-terminal (A) on the magnet switch assembly.

Courtesy of KIA MOTORS AMERICA, INC.

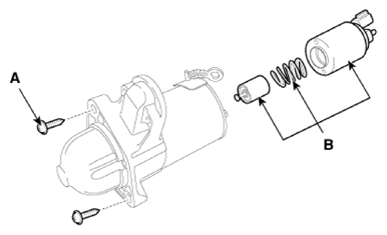

After loosening the screws (A), detach the magnet switch assembly (B).

Courtesy of KIA MOTORS AMERICA, INC.

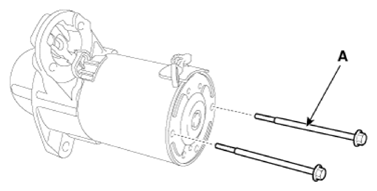

Loosen the through bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

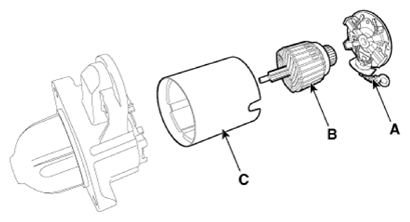

Remove the brush holder assembly (A), armature assembly (B) and yoke assembly (C).

Courtesy of KIA MOTORS AMERICA, INC.

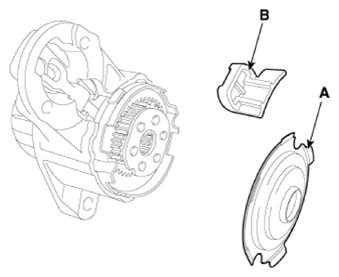

Remove the gasket sheet (A) and lever stop (B).

Courtesy of KIA MOTORS AMERICA, INC.

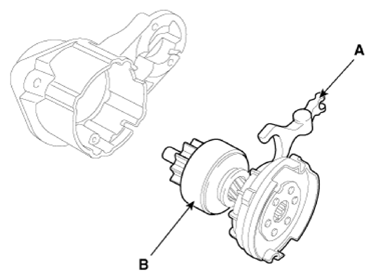

Remove the reducer assembly (A) and lever (B).

Courtesy of KIA MOTORS AMERICA, INC.
Press the stopper (A) using a socket (B).

Courtesy of KIA MOTORS AMERICA, INC.

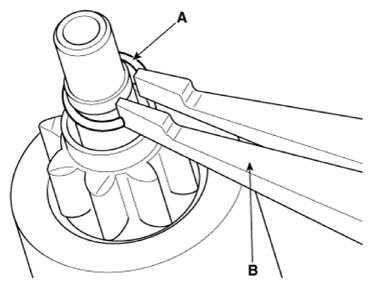

After removing the stop ring (A) using stop ring pliers (B).

Courtesy of KIA MOTORS AMERICA, INC.

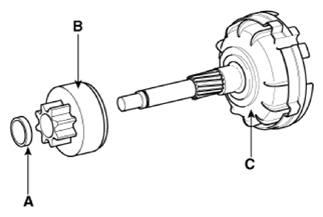

Disconnect the stopper (A), overrunning clutch (B) and internal gear (C).

Courtesy of KIA MOTORS AMERICA, INC.

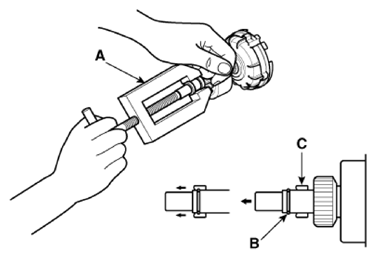

NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
