Repair Procedures: Removal

  1. Place the shift lever in the "N" position.
  2. Remove the air duct and the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

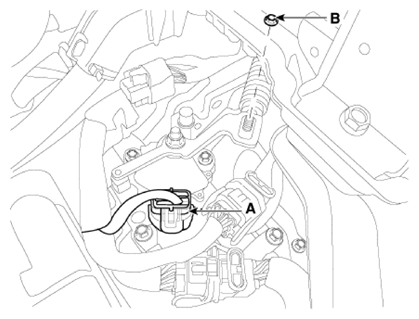

  3. Disconnect the inhibitor switch connector (A).
  4. Loosen the shift cable mounting nut (B).
    G13304177Courtesy of KIA MOTORS AMERICA, INC.

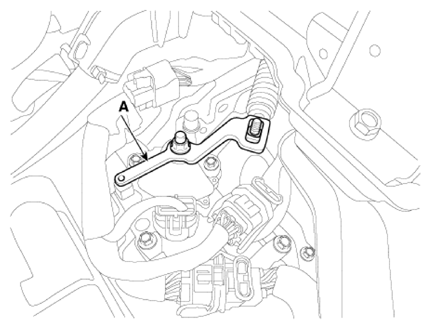

  5. Remove the manual control lever (A).
    G13304178Courtesy of KIA MOTORS AMERICA, INC.

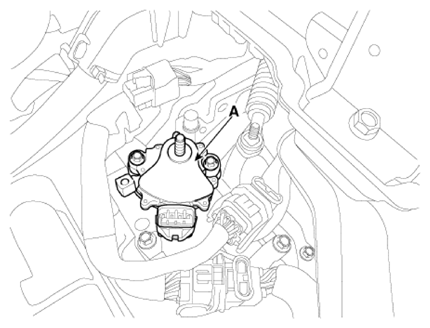

  6. Remove the inhibitor switch (A).
    G13304179Courtesy of KIA MOTORS AMERICA, INC.
