Removal And Installation

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

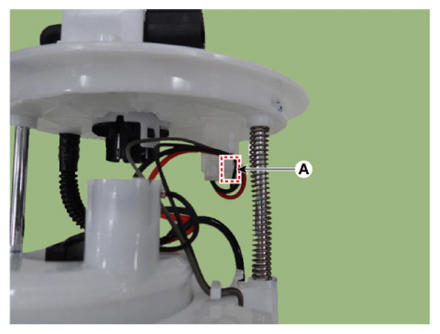

  2. Disconnect the fuel sender connector (A).
    G13303926Courtesy of KIA MOTORS AMERICA, INC.

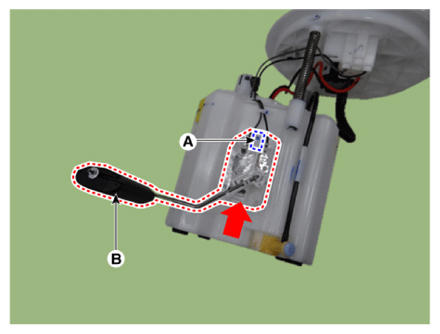

  3. Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.
    G13303927Courtesy of KIA MOTORS AMERICA, INC.
    G13303928Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
