Trunk Lock Module
- Disconnect the negative battery terminal.
- Remove the trunk lid trim.
(Refer to " Replacement ")

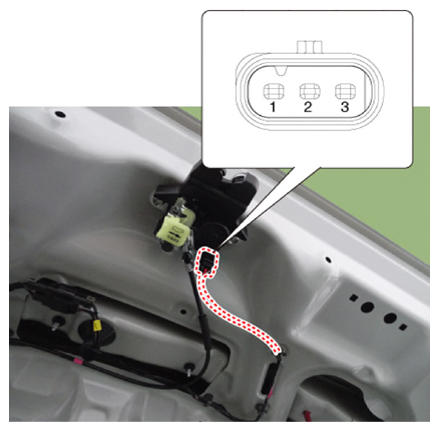

- Disconnect the trunk lock module connector (A).
- Check actuator operation by connecting power and ground as shown in the illustration below. To prevent damage to the actuator, apply battery voltage only momentarily.
