[Fuel Pump Module]

  1. Remove the fuel pump module.

    (Refer to " Removal  ")

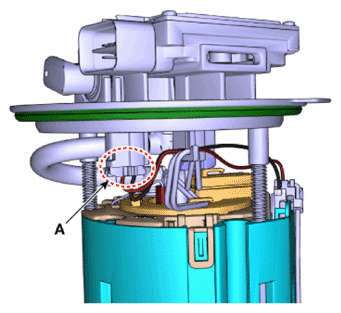

  2. Disconnect the fuel sender connector (A).
    G13834131Courtesy of KIA MOTORS AMERICA, INC.

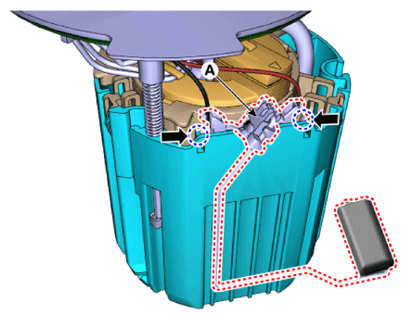

  3. Press the fixing hook and then remove fuel sender (A).
    G13834132Courtesy of KIA MOTORS AMERICA, INC.
