Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to " RELEASE RESIDUAL PRESSURE  ")

  2. Remove the rear seat cushion.

    (Refer to " [Rear Seat Cushion Assembly]  ")

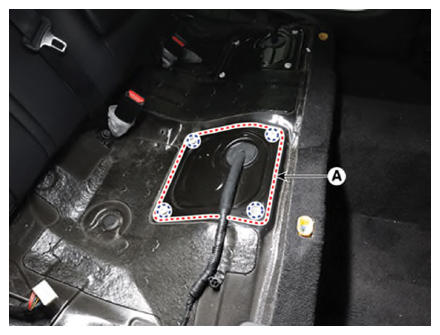

  3. Remove the suction plate and sender service cover (A).
    G13834061Courtesy of KIA MOTORS AMERICA, INC.

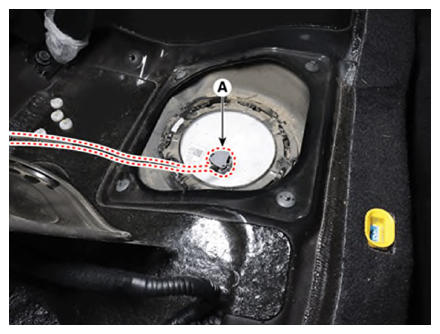

  4. Disconnect the suction plate and sender assembly connector (A).
    G13834062Courtesy of KIA MOTORS AMERICA, INC.

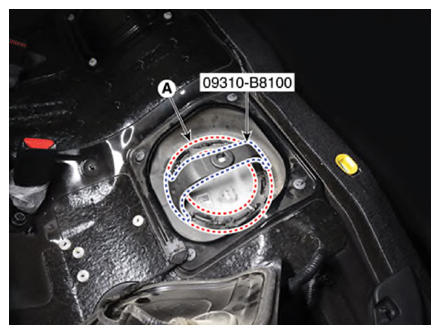

  5. Remove the suction plate and sender assembly after removing the plate cover (A) by using a SST (09310- B8100).
    G13834063Courtesy of KIA MOTORS AMERICA, INC.

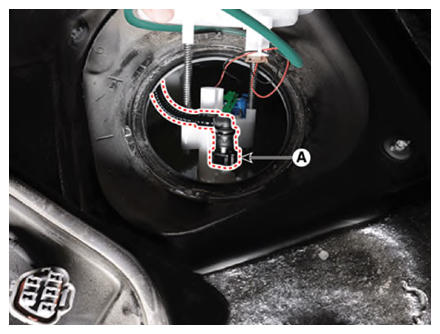

  6. Disconnect the suction plate to fuel pump hose quick-connector (A).
    G13834064Courtesy of KIA MOTORS AMERICA, INC.
