Vehicle S/W Management: Notes

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G13810960Courtesy of KIA MOTORS AMERICA, INC.

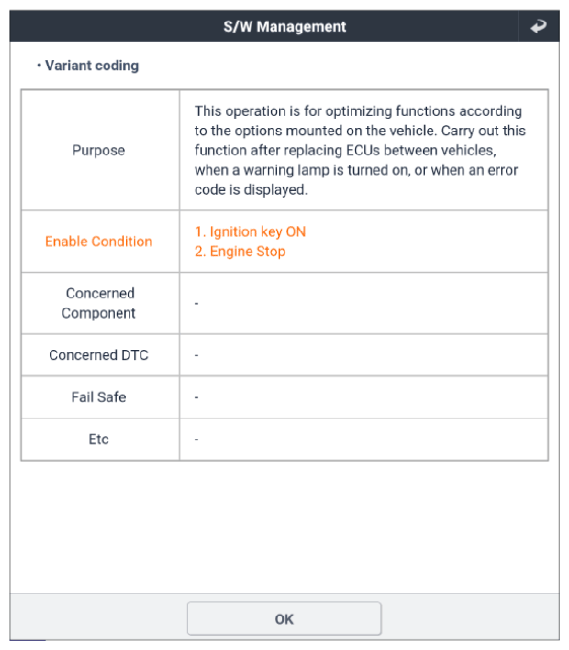

G13810961Courtesy of KIA MOTORS AMERICA, INC.

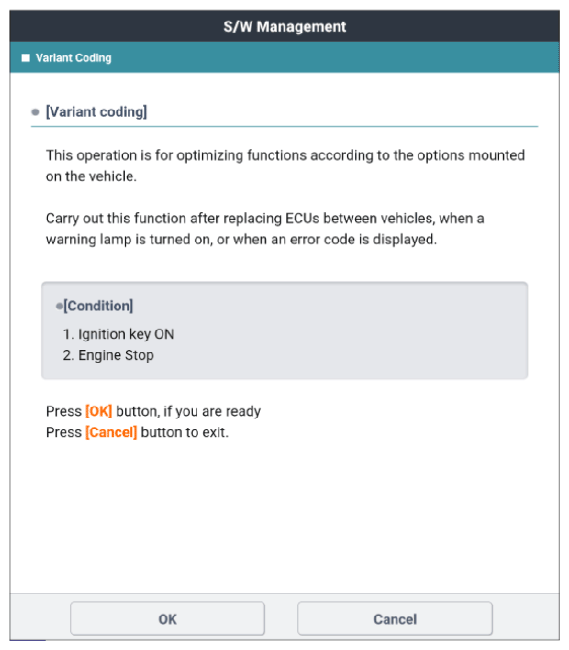

G13810962Courtesy of KIA MOTORS AMERICA, INC.

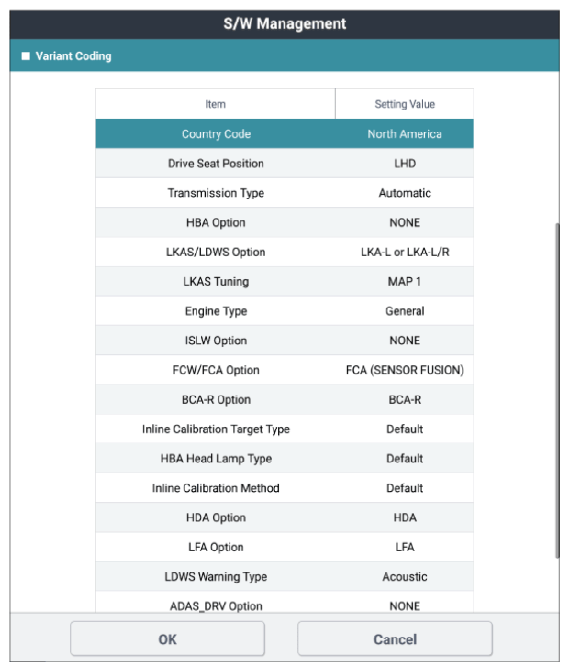

G13810963Courtesy of KIA MOTORS AMERICA, INC.
G13810964Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON". (with calibration target)
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
