Side View Camera

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the outside rear view mirror scalp and housing cover.

    (Refer to Body - " OUTSIDE REAR VIEW MIRROR  ")

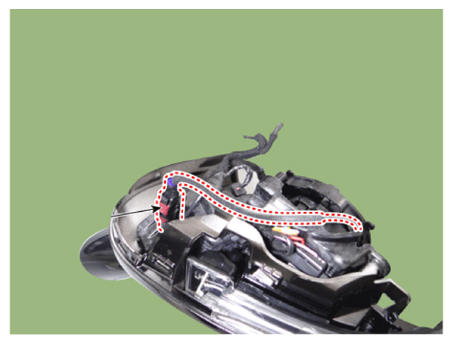

  3. Disconnect the side view camera connector (A).
    G13836733Courtesy of KIA MOTORS AMERICA, INC.

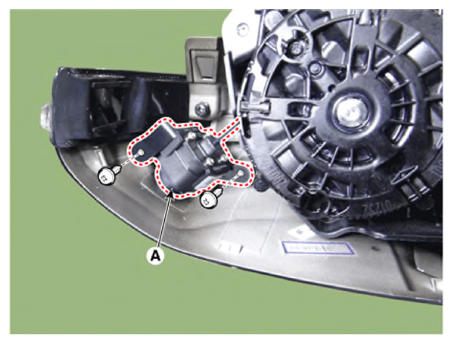

  4. Remove the side view camera (A) after loosening the screws.
    G13836734Courtesy of KIA MOTORS AMERICA, INC.
