Smart Key Diagnosis

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect VCI to the vehicle. (IG OFF)
  2. SMK sensor data check in KDS.
  3. Operate the key buttons. (Lock, Unlock, Remote start)
  4. Check if the key works.

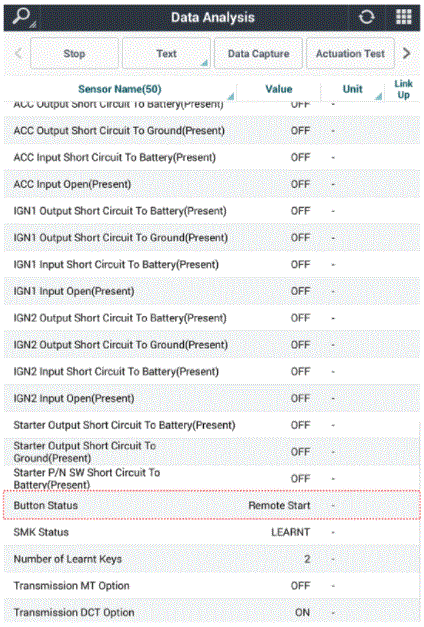

    G00599966Courtesy of KIA MOTORS AMERICA, INC.

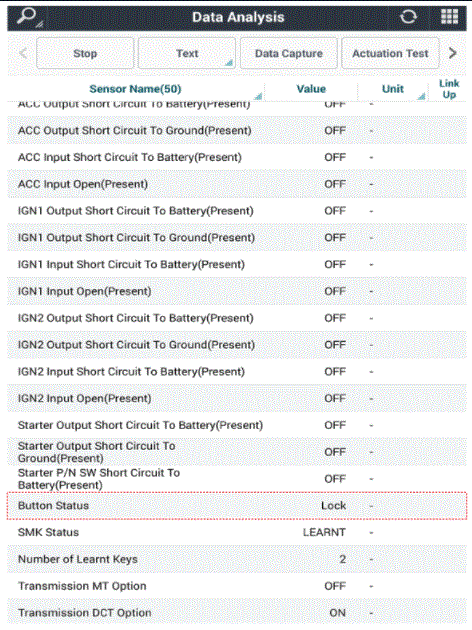

    G00599967Courtesy of KIA MOTORS AMERICA, INC.

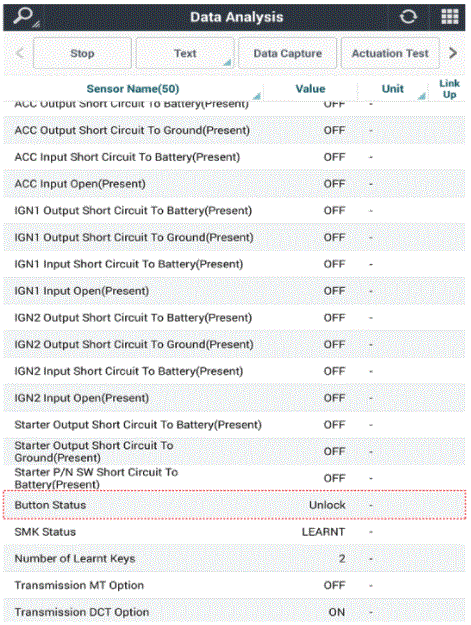

    G00599968Courtesy of KIA MOTORS AMERICA, INC.
