Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad garnish [RH].

    (Refer to " Crash pad garnish [RH]  ")

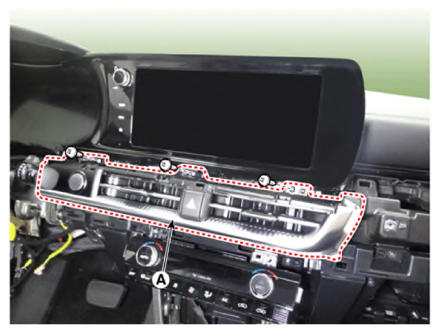

  3. Remove the center air vent garnish (A) by loosening the mounting screws.
    G13836096Courtesy of KIA MOTORS AMERICA, INC.

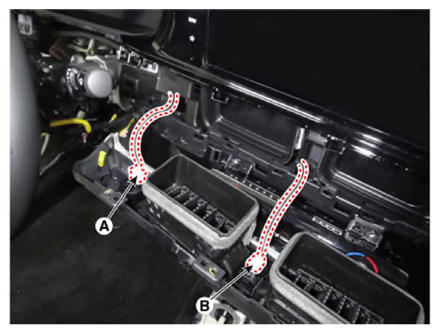

  4. Disconnect the start/stop button connector (A) and hazard lamp switch connector (B).
    G13836097Courtesy of KIA MOTORS AMERICA, INC.

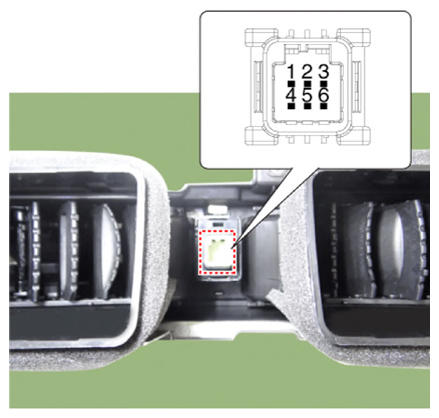

  5. Check for continuity between the terminals.
    G13836098Courtesy of KIA MOTORS AMERICA, INC.
    G13836099Courtesy of KIA MOTORS AMERICA, INC.
