Repair Procedures: Replacement

NOTE: Be careful not to damage the retractor when removing or installing the seat belt.

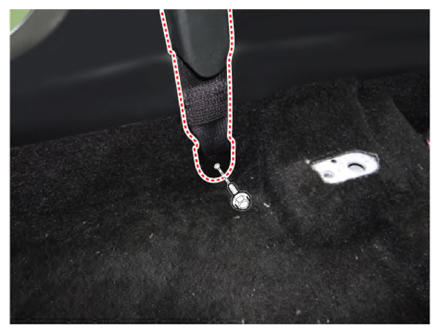

Open the front seat belt lower cover (A) and loosen the mounting bolt.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the center pillar upper trim.
(Refer to " Replacement ")

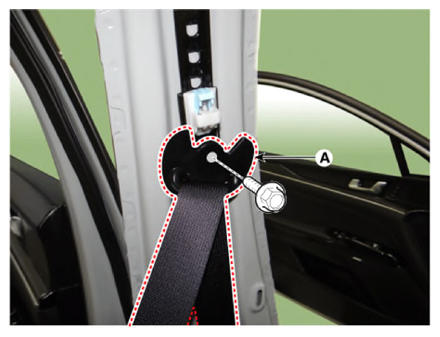

Loosen the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

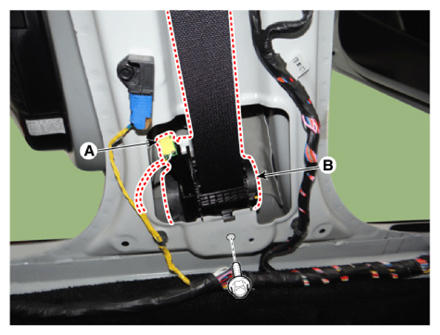

Separate the airbag connector (A), loosen the mounting bolt and remove the front seat belt retractor (B).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.
- Make sure the connector is plugged in properly.
