Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the trunk lid trim.
(Refer to " Replacement ")

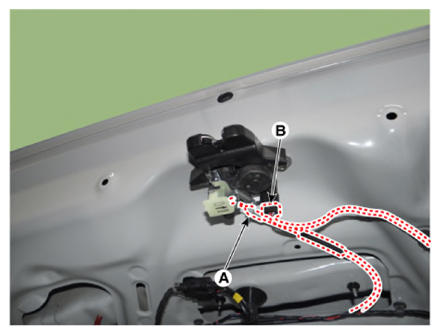

Disconnect the cable (A) and connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

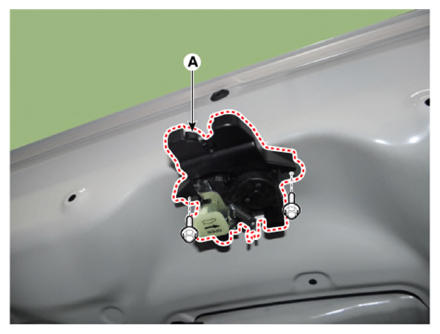

Remove the trunk lid latch (A) after loosening the bolts.
Tightening torque:

6.9 - 8.8 N m (0.7 - 0.9 kgfm, 5.0 - 6.5 lb ft, 60.8 - 78.1 lb in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the hood latch release cable is connected properly.
- Make sure the trunk lid locks/unlocks and opens/closes properly.
