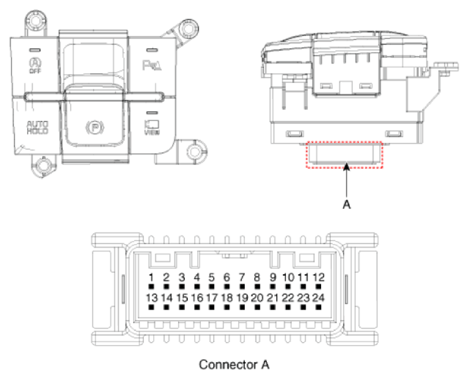

Connector And Terminal Function
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Function |
|---|---|
| 1 | PAS mode switch |
| 2 | PAS mode indicator |
| 3 | - |
| 4 | Detent |
| 5 | EPB switch1 |
| 6 | EPB switch3 |
| 7 | - |
| 8 | - |
| 9 | Battery (+) |
| 10 | - |
| 11 | ISG mode indicator |
| 12 | ISG mode switch |
| 13 | SVM mode indicator |
| 14 | SVM mode switch |
| 15 | - |
| 16 | Ground |
| 17 | EPB switch2 |
| 18 | EPB switch4 |
| 19 | - |
| 20 | IGN1 |
| 21 | illumination (+) |
| 22 | - |
| 23 | illumination (-) |
| 24 | Auto hold mode |
