S/W Management

Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "Vehicle S/W Management" with KDS.
  3. Perform "Adaptive Value BackUp & Input" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 8

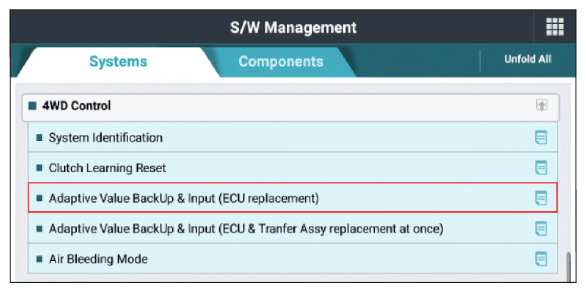

G13807486Courtesy of KIA MOTORS AMERICA, INC.

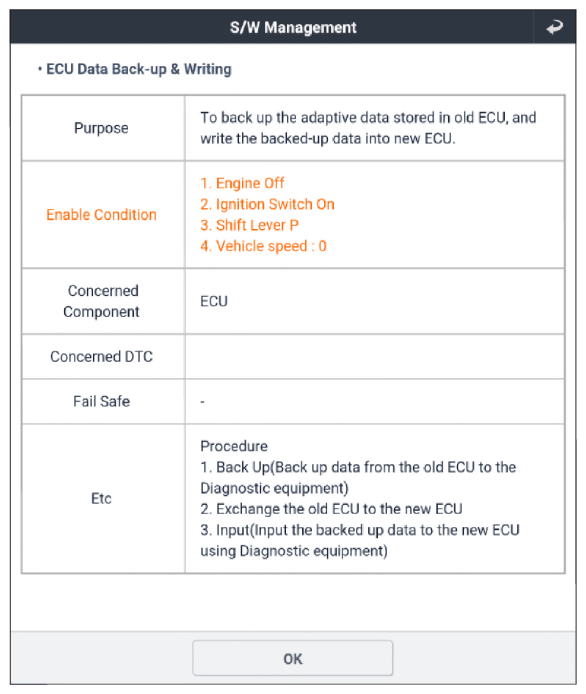

G13807487Courtesy of KIA MOTORS AMERICA, INC.

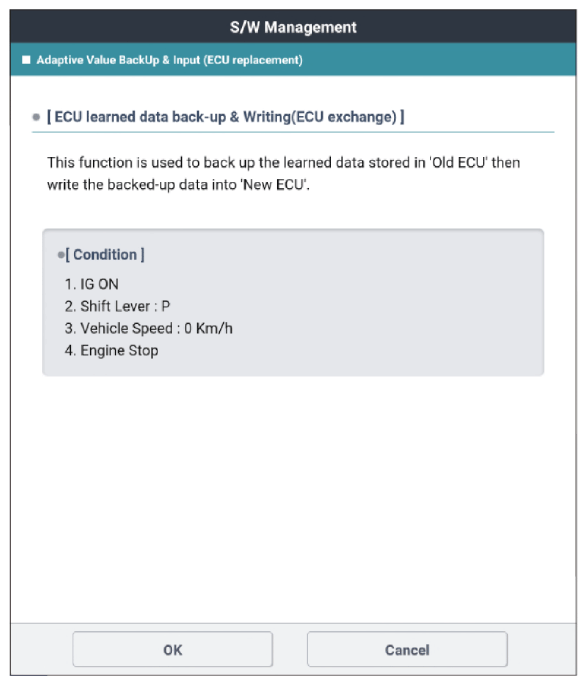

G13807488Courtesy of KIA MOTORS AMERICA, INC.

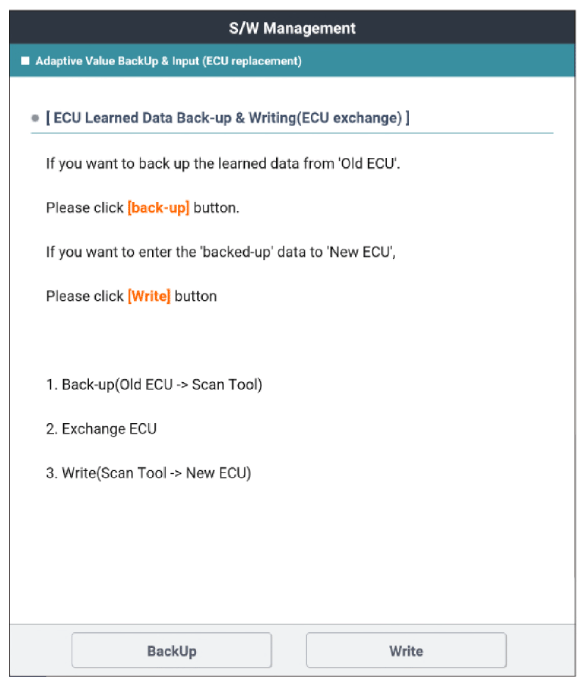

G13807489Courtesy of KIA MOTORS AMERICA, INC.

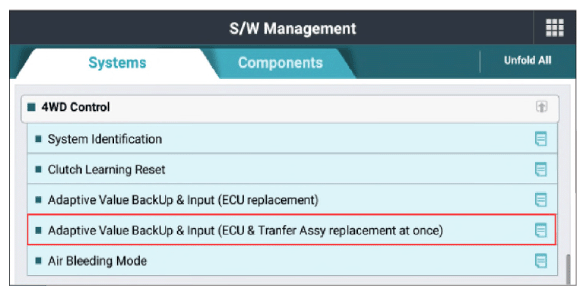

G13807490Courtesy of KIA MOTORS AMERICA, INC.
G13807491Courtesy of KIA MOTORS AMERICA, INC.

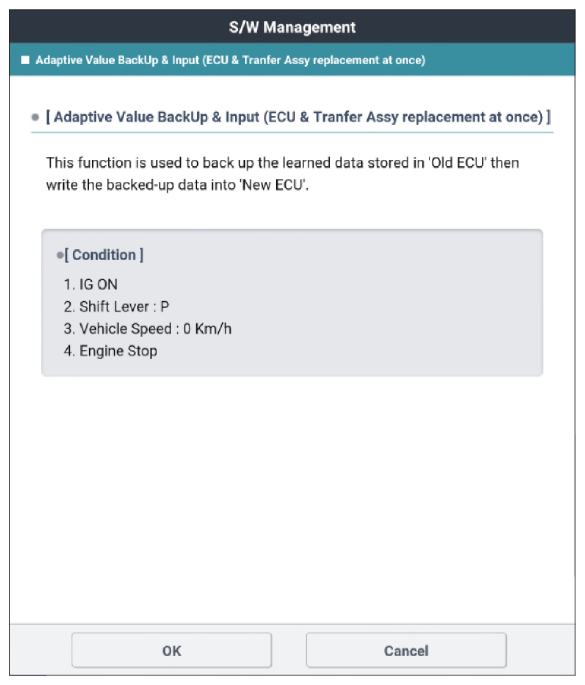

G13807492Courtesy of KIA MOTORS AMERICA, INC.

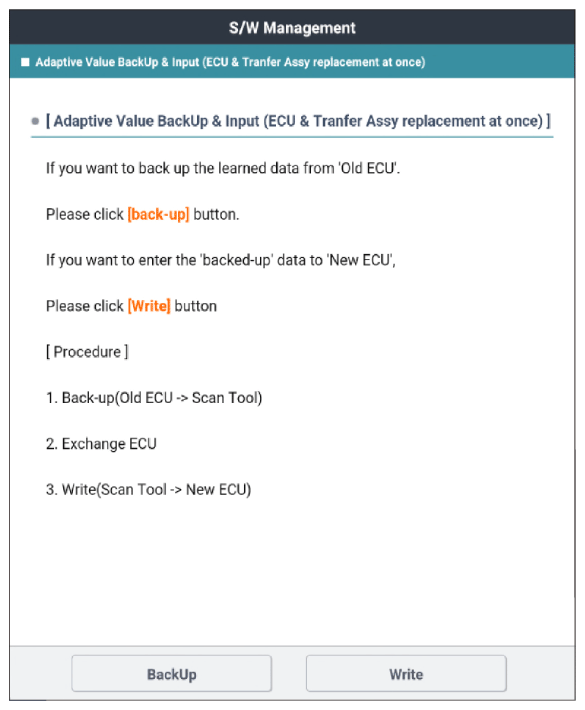

G13807493Courtesy of KIA MOTORS AMERICA, INC.
