Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

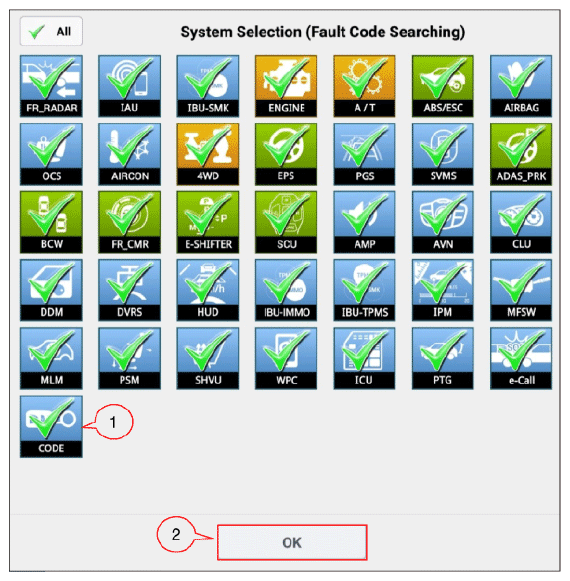

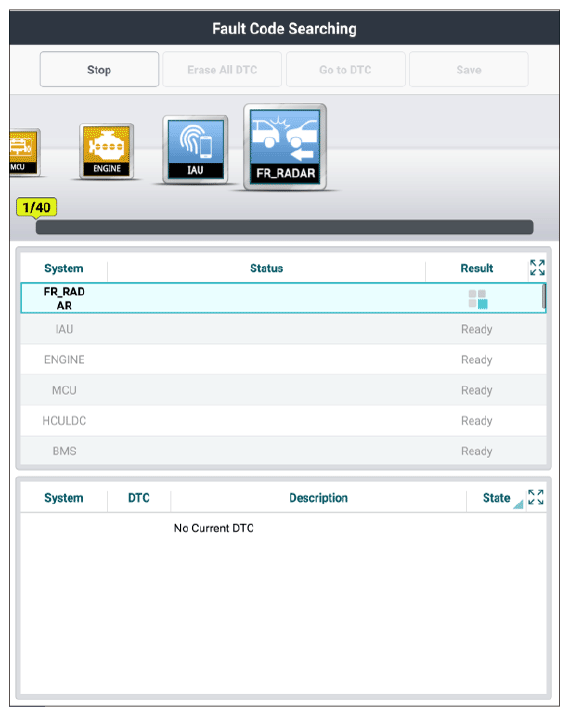

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Ignition "ON". Select correct vehicle model, year, and engine type. Select "Engine", "A/T", "4WD" and "ESP", "CLU" system. (1) Select "Fault Code Searching". (2)	Fig.1 to 2

G13807560

Courtesy of KIA MOTORS AMERICA, INC.

G13807561

Courtesy of KIA MOTORS AMERICA, INC.

Good

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, Go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
If problem still occurs, Go to "Wiring Inspection " procedure.
