Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

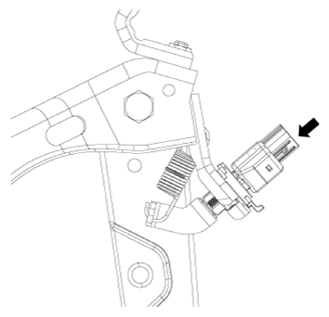

Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.

Courtesy of KIA MOTORS AMERICA, INC.

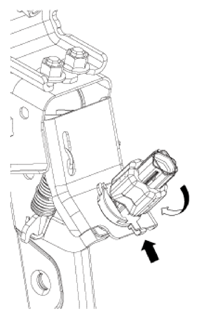

After inserting, turn the stop switch (A) 45° clockwise, and then assemble locking plate by pushing.

Courtesy of KIA MOTORS AMERICA, INC.

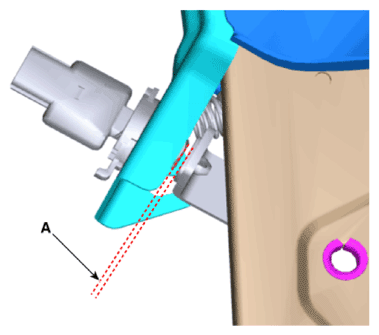

Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance (A) : 1.0 - 2.0 mm (0.04 - 0.08 in.)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- If the gap between stop lamp switch and bracket is not 1.0-2.0mm (0.04-0.08in), perform the above process again.

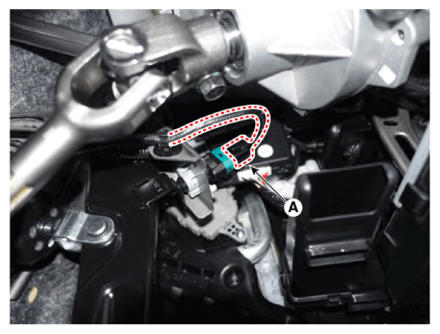

Connect the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the crash pad lower panel.
(Refer to " Replacement ")
