Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

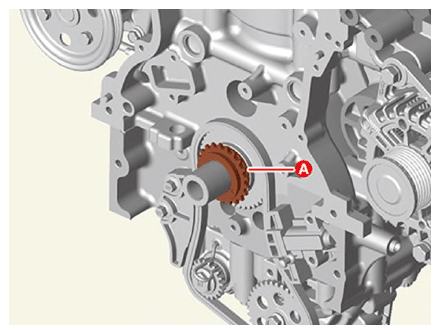

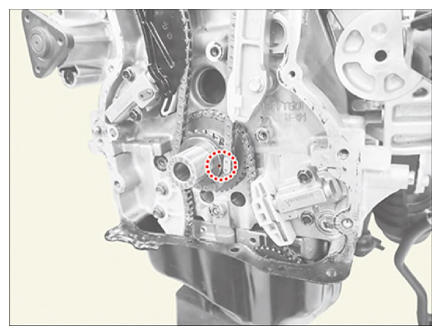

Install the crankshaft chain sprocket (A) for the timing chain.

Courtesy of KIA MOTORS AMERICA, INC.

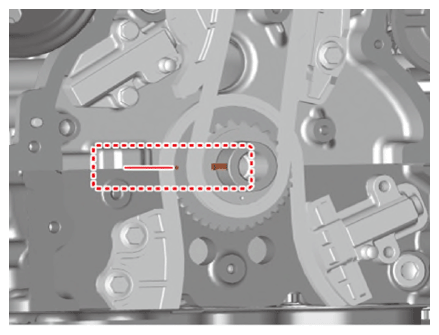

Make sure that the key of crankshaft is aligned with the mounting surface of the lower crankcase.

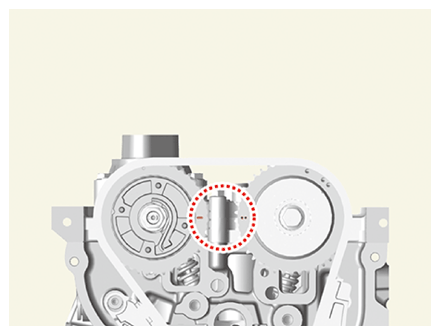

Ensure that the TDC mark on the front of the intake/exhaust CVVT sprockets match with the top of the cylinder head.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

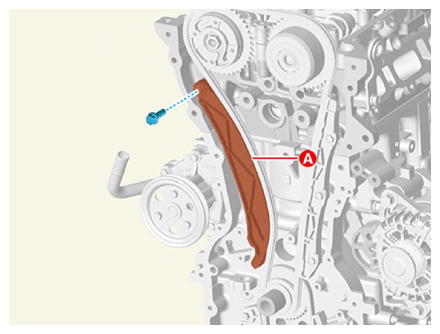

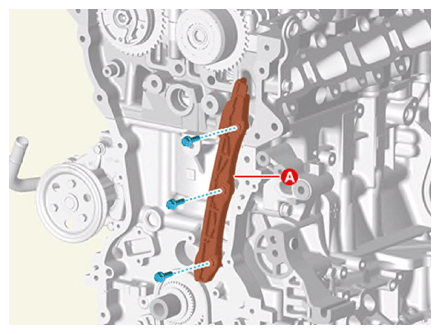

Install the timing chain guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

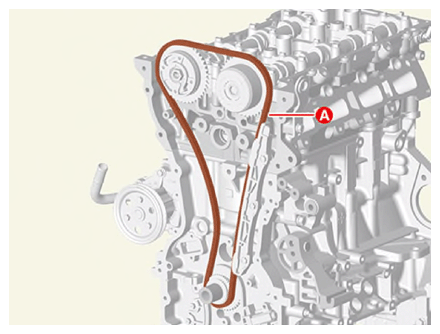

Install the timing chain (A).

Crankshaft sprocket → Timing chain guide → Intake CVVT sprocket → Exhaust CVVT sprocket.

Courtesy of KIA MOTORS AMERICA, INC.

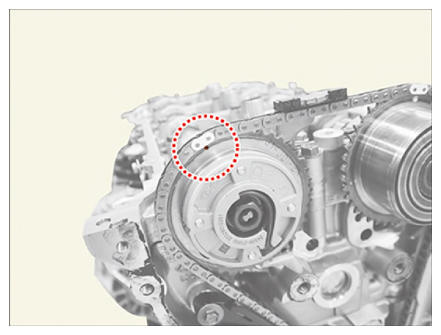

NOTE: When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain [Intake CVVT]

Courtesy of KIA MOTORS AMERICA, INC.

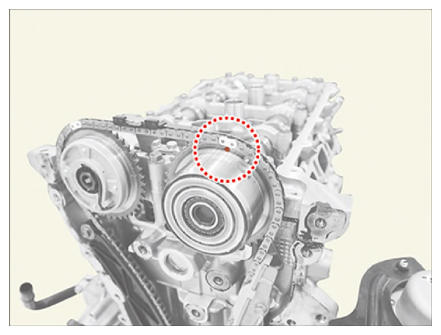

[Exhaust CVVT]

Courtesy of KIA MOTORS AMERICA, INC.

[Crankshaft]

Courtesy of KIA MOTORS AMERICA, INC.

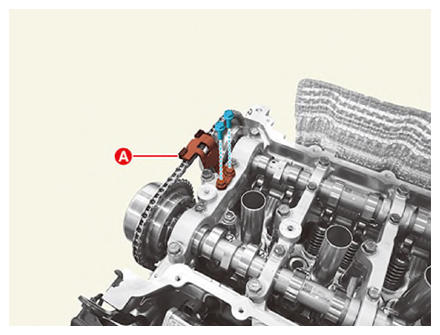

Install the timing chain cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the timing chain tensioner arm (A)
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

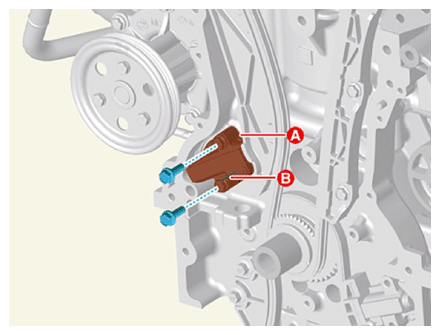

Install the timing chain auto tensioner (B) and pull out pin (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Rotate the crankshaft 2 revolutions in clockwise direction.

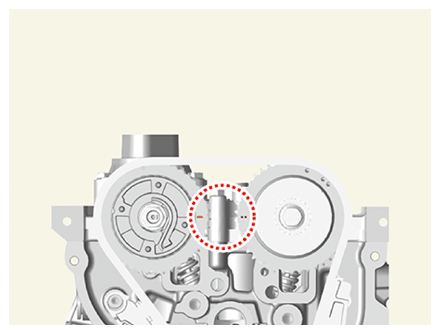

Ensure that the TDC mark on the front of the intake/exhaust CVVT sprockets match with the top of the cylinder head.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If timing marks are not in line, turn the crankshaft clockwise one revolution (360°).
(Do not rotate engine counterclockwise.)
Install the timing chain cover.
(Refer to " Installation ")
