Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to " Release Residual Pressure in Fuel Line  ")

  2. Remove the rear seat cushion.

    (Refer to " [Rear Seat Cushion Assembly]  ")

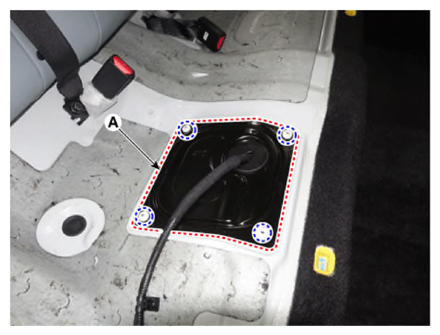

  3. Remove the fuel pump service cover (A).
    G13837628Courtesy of KIA MOTORS AMERICA, INC.

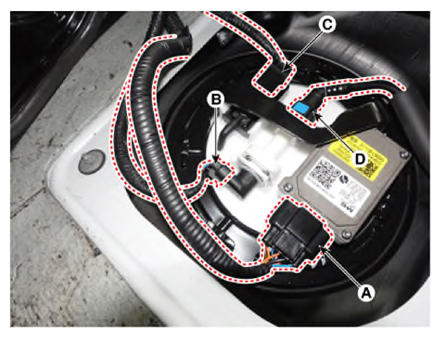

  4. Disconnect the connectors (A, B, C) and feed tube quick-connector (D).
    1. Fuel Pump Control Module (FPCM) connector
    2. Fuel Pressure Sensor (FPS) connector
    3. Fuel Tank Pressure Sensor (FTPS) connector
      G13837629Courtesy of KIA MOTORS AMERICA, INC.

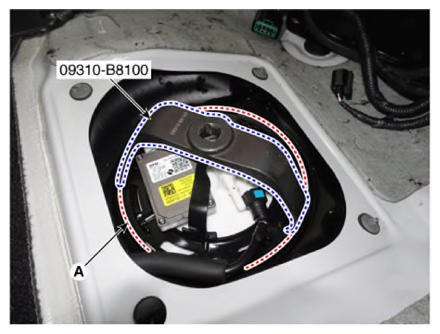

  5. Remove the fuel pump module after removing the plate cover (A) by using a SST (09310 - B8100).
    G13837630Courtesy of KIA MOTORS AMERICA, INC.
