Connector Assembly Status Test

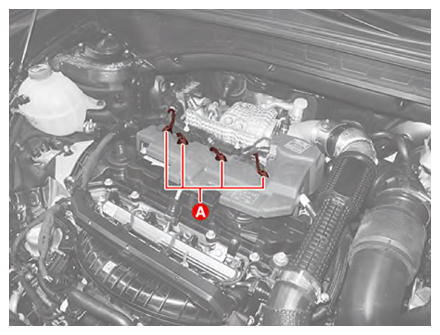

  1. Disconnect the connectors (A) and reconnect it.
    G13837288Courtesy of KIA MOTORS AMERICA, INC.

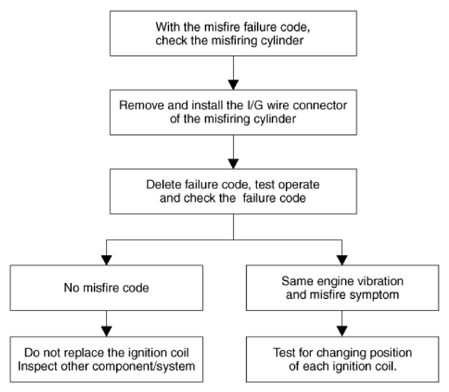

    G13837289Courtesy of KIA MOTORS AMERICA, INC.
