Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Engine "ON". (cold condition) | 1. Connect KDS to "Data Link Connector (DLC)". 2. Monitor parameters in "Current Data" with KDS. |
Fig.1 |
| 1. Engine "ON". (warm up condition) | Fig.2 |

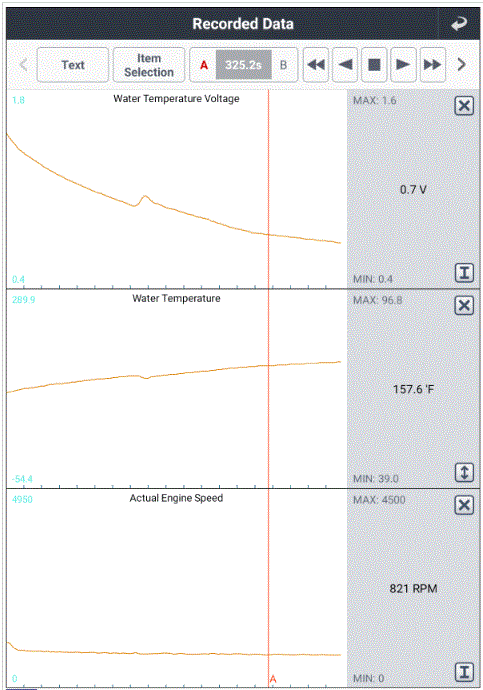

Fig.2) Current data relate to engine coolant temperature with warm up condition
Good
• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
• Repair or replace as necessary and go to "Verification Of Repair " procedure.
Noo Good
• Go to "Wiring Inspection " procedure.
