Repair Procedures: Removal

Shift transmission to "N".
Remove the air cleaner assembly.
(Refer to " Removal and Installation ")
Remove the battery and battery tray.
(Refer to " Removal ")

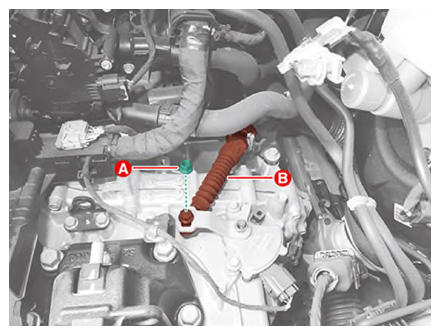

Remove the shift cable (B) from the bracket after removing a nut (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to " Replacement ")
Remove the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

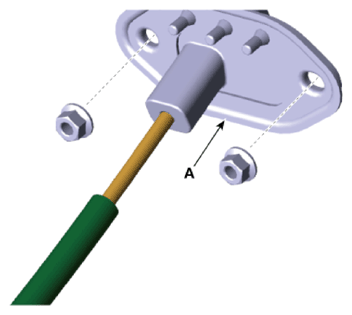

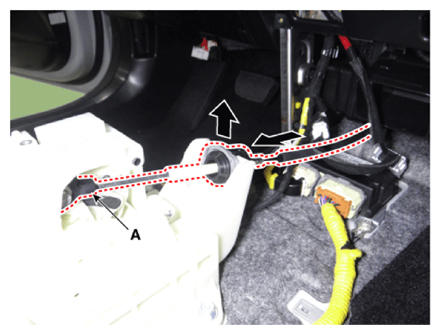

Remove the shift cable retainer (A) after removing the nuts.
Then, remove the shift cable by pulling it toward the vehicle interior.
