Tailgate Open Switch

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate lid trim.

    (Refer to Tailgate - "TAILGATE TRIM ")

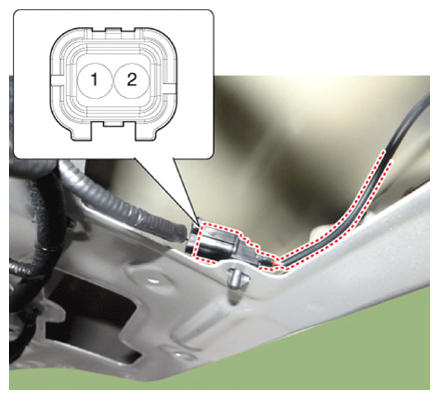

  2. Check for continuity between the tailgate open switch terminals.
    G13204850Courtesy of KIA MOTORS AMERICA, INC.
  3. If continuity is not specified, inspect the switch
    G13204851Courtesy of KIA MOTORS AMERICA, INC.
