Tailgate Open Switch

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal.
Remove the tailgate latch.
(Refer to Body - "TAILGATE LATCH ")

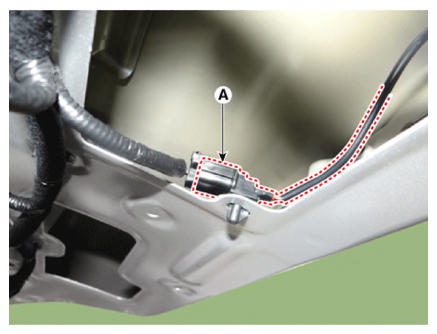

Disconnect the tailgate open switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

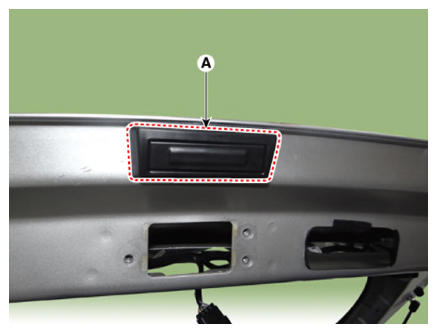

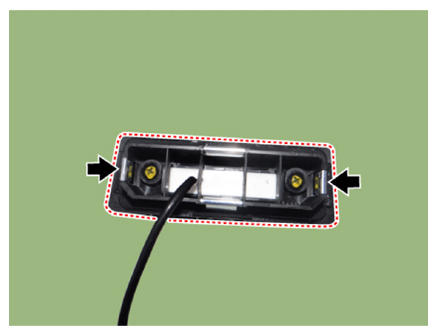

Remove the tailgate open switch assembly (A) after pushing mounting hooks.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
