Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

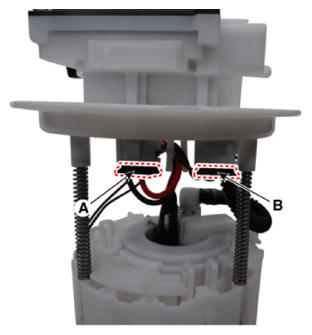

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G13348909Courtesy of KIA MOTORS AMERICA, INC.
  3. Lift the fixing hook (A) by using a common driver, and then remove the fuel sender (B).
    G13348910Courtesy of KIA MOTORS AMERICA, INC.

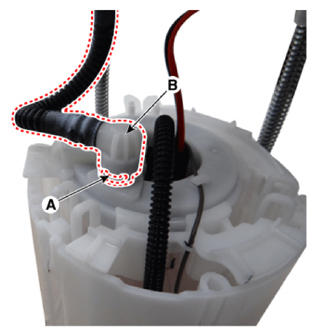

  4. Remove the fixing clip (A), and then disconnect the feed tube (B).
    G13348911Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the head assembly after releasing the cushion fixing clip (A).
    G13348912Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the reservoir-cup (B) after releasing the fixing hook (A).
    G13348913Courtesy of KIA MOTORS AMERICA, INC.

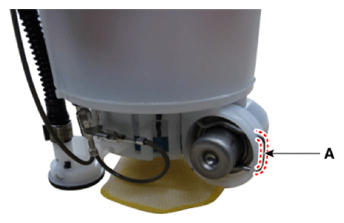

  7. Remove the fuel pressure regulator (B) after releasing the fixing hook (A).
    G13348914Courtesy of KIA MOTORS AMERICA, INC.
    G13348915Courtesy of KIA MOTORS AMERICA, INC.
    G13348916Courtesy of KIA MOTORS AMERICA, INC.
