Repair Procedures: Removal

Open the trunk.

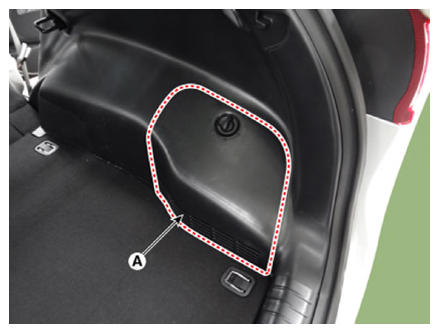

Remove the luggage side trim [RH] side cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

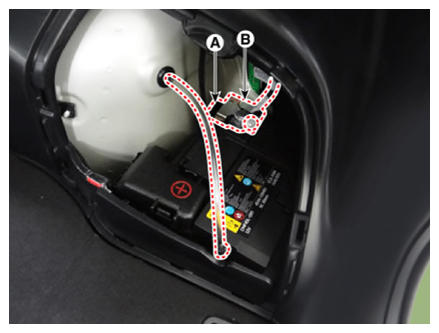

Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
Disconnect the battery sensor connector (B).
Battery (-) terminal tightening nut:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the luggage side trim [RH].
(Refer to Body - "LUGGAGE SIDE TRIM ")

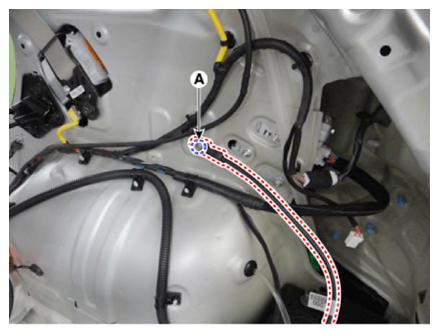

Remove the battery sensor by loosening the mounting bolt (A).
Battery sensor cable flange mounting bolt(Chassis ground):

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
