Removal And Installation

Turn ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

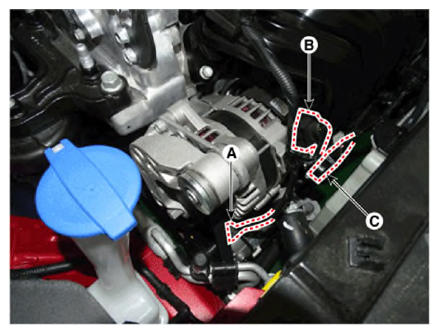

Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable (C) from alternator "B" terminal.
Alternator B-terminal cable mounting nut:

18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 4.1 - 5.5 Ib-ft)

Courtesy of KIA MOTORS AMERICA, INC.

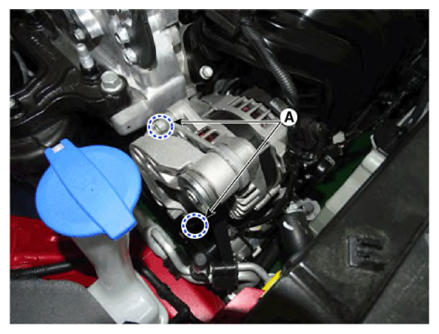

Loosen the mounting bolts (A).
Alternator lower bolt:

29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 Ib-ft)

Courtesy of KIA MOTORS AMERICA, INC.

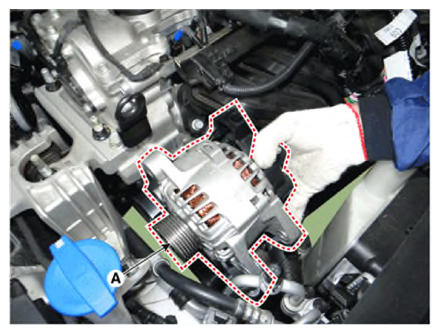

Remove the alternator (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
