Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.
G13707876Courtesy of KIA MOTORS AMERICA, INC.
G13707877Courtesy of KIA MOTORS AMERICA, INC.
G13707878Courtesy of KIA MOTORS AMERICA, INC.
G13707879Courtesy of KIA MOTORS AMERICA, INC.
G13707880Courtesy of KIA MOTORS AMERICA, INC.
G13707881Courtesy of KIA MOTORS AMERICA, INC.
G13707882Courtesy of KIA MOTORS AMERICA, INC.

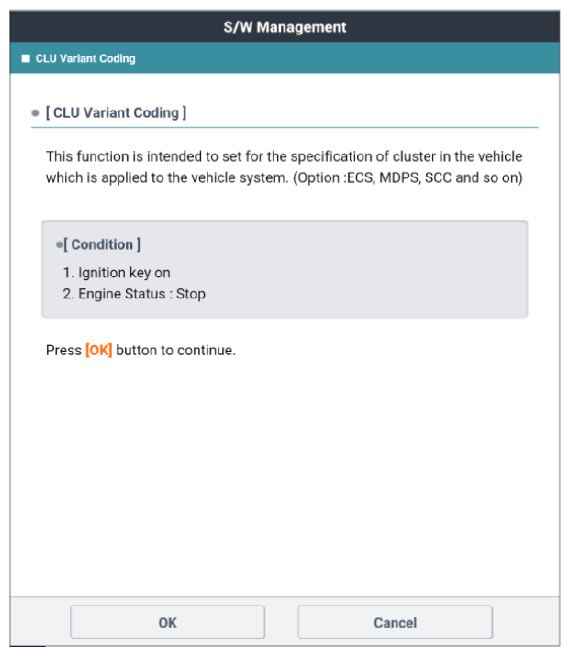

G13707883Courtesy of KIA MOTORS AMERICA, INC.
G13707884Courtesy of KIA MOTORS AMERICA, INC.
G13707885Courtesy of KIA MOTORS AMERICA, INC.
