Components Location

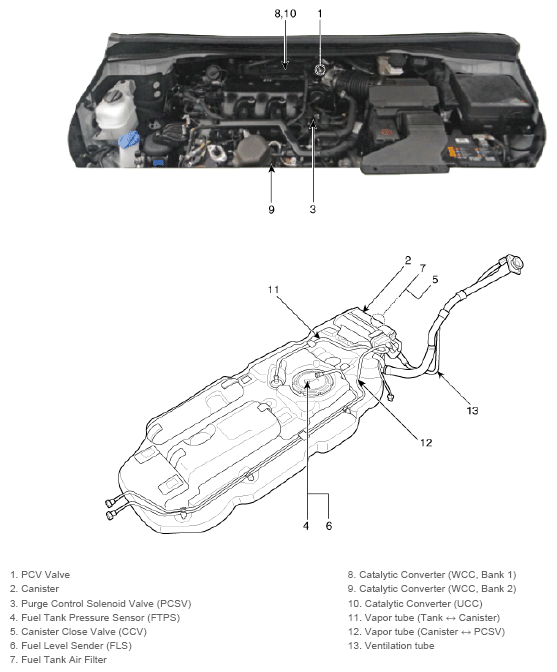

G13044128Courtesy of KIA MOTORS AMERICA, INC.

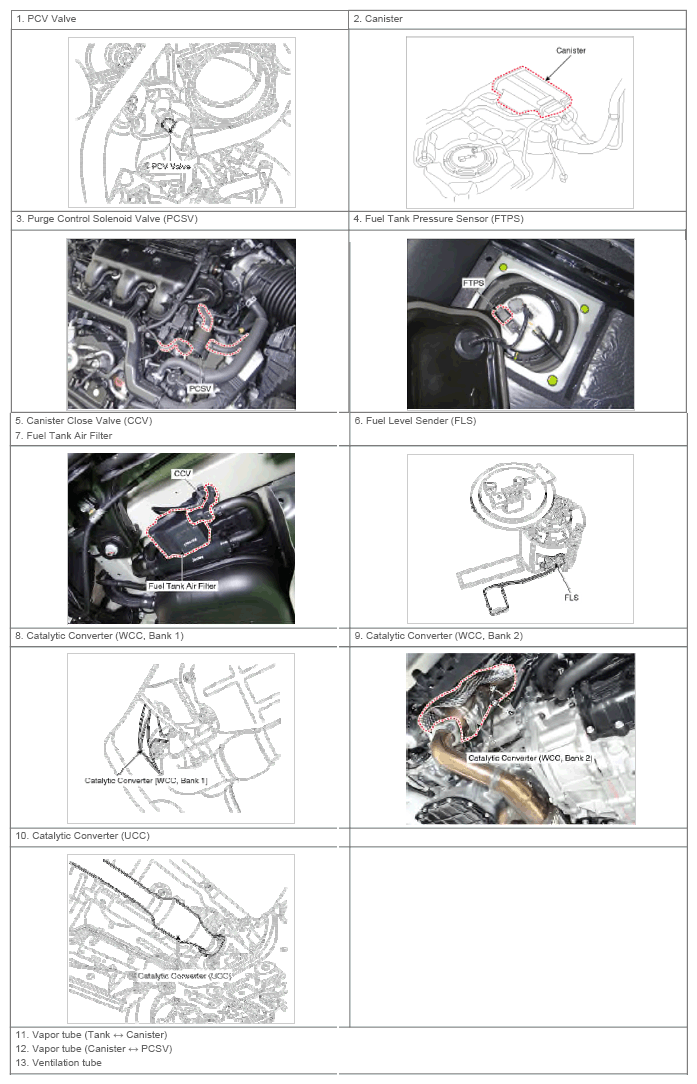

G13044129Courtesy of KIA MOTORS AMERICA, INC.

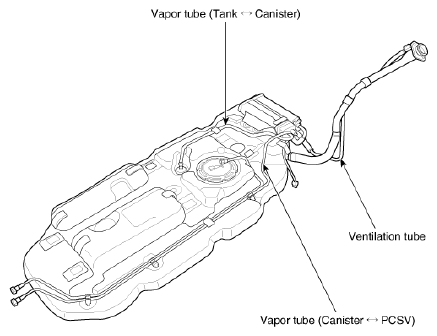

G13044130Courtesy of KIA MOTORS AMERICA, INC.
