Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

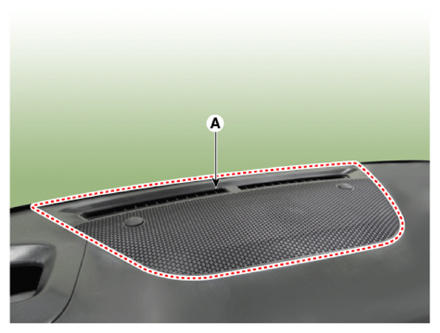

  2. Remove the center speaker grille (A).
    G13486547Courtesy of KIA MOTORS AMERICA, INC.

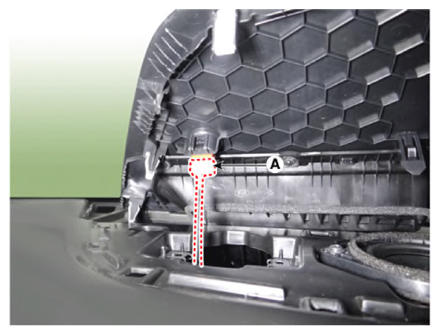

  3. Disconnect the photo sensor & auto light sensor connector (A).
    G13486548Courtesy of KIA MOTORS AMERICA, INC.

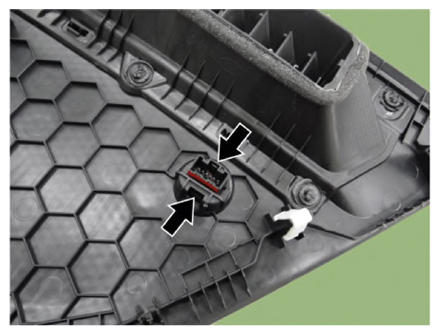

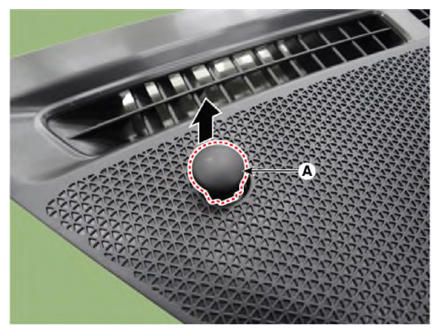

  4. Remove the photo sensor & auto light sensor (A) by pressing the locking pins.
    G13486549Courtesy of KIA MOTORS AMERICA, INC.
    G13486550Courtesy of KIA MOTORS AMERICA, INC.
